INDUSTRIAL ULTRASONIC CLEANER TS-UD SERIES
Characteristics:
Tank built in SUS304.1.2-2.0mm thick,stainless-steel.
The PLC controls the entire cleaning process.
insulation could rise to the effect of thermal insulation Lifting plat form

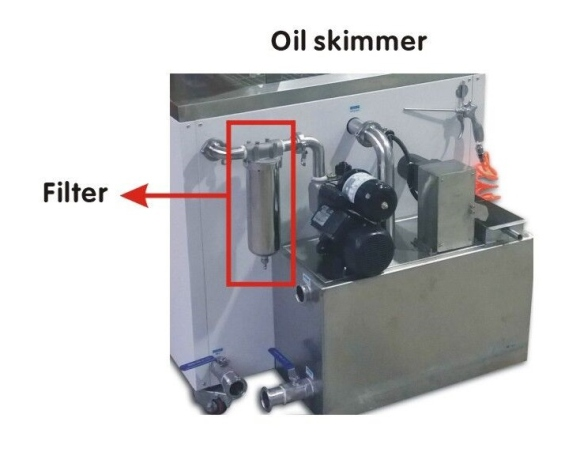

Agitation function during its work imporve cleaning effect Intake,drain,over flow vibrating box design easy to repair oil skimmer-remove dirty from water surface Filter
Air gun design can quickly dry the surface of the parts after cleaning Adjustable legs
MODEL: | TS-UD300 | TS-UD600 | TS-UD800 | TS-UD1500 | TS-UD2000 |
Tank total capacity | 381L | 568L | 896L | 1620L | 2333L |
Tank inner size (L*W*H)mm | 1200*600*520 | 1400*700*580 | 1600*800*700 | 1800*1000*900 | 2100*1100*1010 |
Useful size(L*W*H)mm | 1100*500*420 | 1300*600*480 | 1500*700*560 | 1700*900*800 | 2000*1000*900 |
Ultrasonic power | 3.6KW | 5.5KW | 8KW | 15KW | 20KW |
Ultrasonic frequency | 28KHZ | 28KHZ | 28KHZ | 28KHZ | 28KHZ |
Heater’s (Hot Plate) Power | 10KW | 22KW | 22KW | 22KW | 30KW |
Lift platform(mm) | 1100*500 | 1300*600 | 1500*700 | 1700*900 | 2000*1000 |
Load capacity | 300kgs | 400kgs | 600kgs | 1000kgs | 1200kgs |
Agitation space | 50mm | 50mm | 150mm | 150mm | 150mm |
Oil skimmer effect | 25W | 25W | 25W | 25W | 25W |
Circulation pump power | 200W | 200W | 200W | 200W | 200W |
Filter | 30 μ m | 30 μm | 30μm | 30 μm | 30 μm |
PLC touch screen | 7 | ||||
Housing material | Stainless steel | ||||
Generator power requirement | AC 220V/380V 3phase | ||||
-
