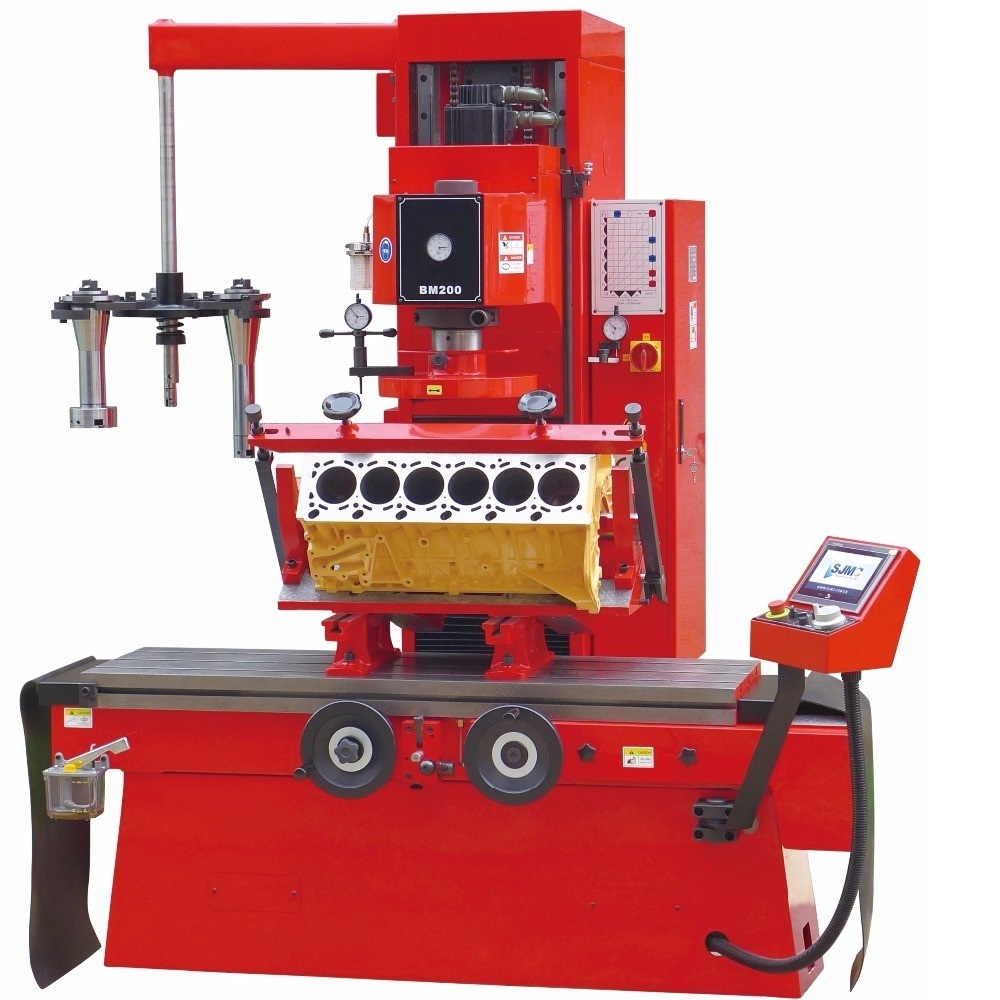

CYLINDER BORING-MILLING MACHINE BM200
The Vertical Fine Boring Milling Machine BM200 has combined all functions and simple performance of the traditional Cylinder Boring Machine with the easy-to-operate Easy Touch control system.Through the joint operation of the standard mechanical handwheel and the electronic handwheel, the boring of the cylinder body and the machining of the milling plane can be easily accomplished. With the excellent EasyTouch system, even a new hand can easily learn to operate the machine.
Model | BM200 | B200 | |
Control System | Easy Touch 3 Axis | Without | |
Boring capacity | 200mm | ||
Max.Boring Depth | 350 mm | ||
Max. Milling Area( LxW) | 300x920mm | Without Milling | |
Spindle Speed | 50~1000 rpm stepless | ||
Spindle Feeding | 10-900 mm/min(0.01-0.2mm/r) | ||
Rated Torque of Boring at 50-500rpm | 58N.M | ||
Rated Torque of Boring at500-780 rpm | 22 N.M. | ||
Spindle Traverse | 600mm | ||
Distance Between Spindle End Face and Work Table | 0~700 mm | ||
Distance between Spindle Axis and Carriage Vertical Plane | 380 mm | ||
Longitudinal Feeding of Work Table by Electric | 30~1200 mm/min | Hand Movement | |
Longitudinal Quick Travel of Work Table by Electric | 1200mm/min | Hand Movement | |
Longitudinal Traverse of Work Table | 1200 mm | ||
Cross Traverse of Work Tabe | 100 mm | ||
Work Table size (LxW) | 400x1350 mm | ||
Boring Accuracy | H7 | ||
Working Accuracy | Roundness for Boring | 0.005 mm | |
Cylindriclty for Boring | 0.015mm/300 mm | ||
Flatness for Milling | 0.0127 mm/305mm | Without Milling | |
Surface Roughness | Boring | Ra 0.8 | |
Milling | Ra 0.8 | Without Milling | |
Power of Spindle Motor | 3 KWAC Servo Motor | ||
Motor Power of WorkTable Movement | 0.4kw | Hand Movement | |
Motor Power of Spindle vertical Movement | 0.4 kw | ||
Overall dimensions (LxWxH ) | 1870x1600x2000mm | ||
Package Size | 2200x1450x2250mm | ||
N.W. | 1900Kg | ||
G.W. | 2300 Kg | ||
-
