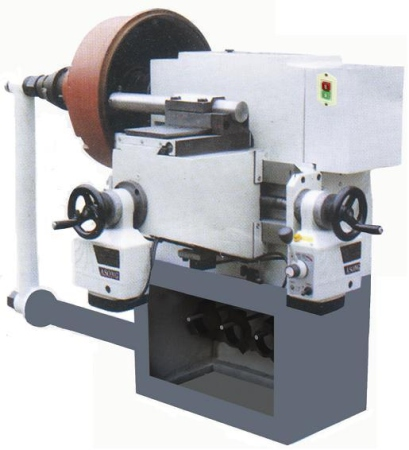

T8445
*Applicable for repairing medium & small brake drum/disc.
Available feeding in either direction.enables high efficiency.
*Adjustable turning depth limit with auto stop funcion.
Special for repairing brake discs of the luxurious medium
vehicles& off_road vehicles like BMW,BENZ,AUDl,etc.
Two faces of brake disc can be turned simultaneously

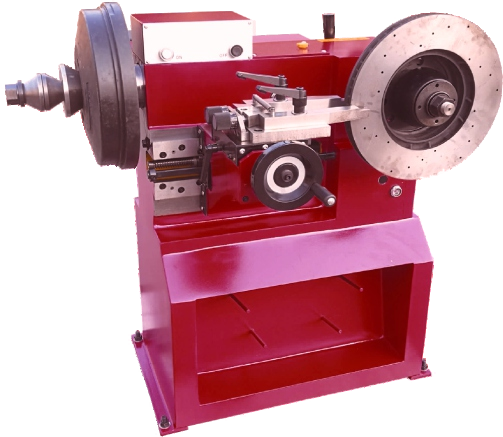

T8445A
"Applicable for repairing brake drum/disc of vehicles like SUV ca
*Upgrade version ofT8445
3 higher spindle speed & 2 speeding rate enable higher efficienc.
Special forrepairing brake discs of the luxurious medium
vehicles& off_road vehicles like BMW.BENZ.AUDl.etc.
Two faces of brake disc can be turned simultaneously.
More convenient optimized tool post
Model | T8445(FCV) | T8445A |
Drum diameter | 180-450mm | 180-450mm |
Disc diameter | ≤400mm | ≤400mm |
Rotating speed of workpiece | 30,52.85 r/ min | 30,54.80 r/ min |
Max travel of tool | 170 mm | 170 mm |
Feeding capacity | 0.16 | 0.16 |
Motor Power | 1.1kw | 1.1kW |
Packing Size | 690X890x880mm | 690X890x880mm |
Net/Gross weight | 320/370kg | 320/370kg |

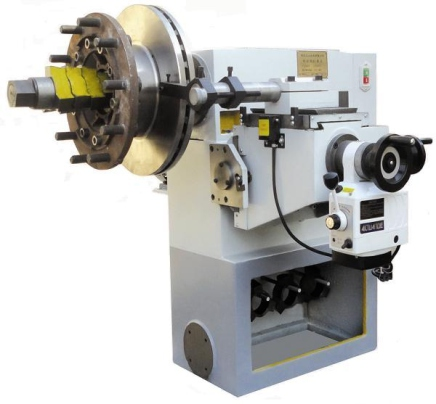

C9365
.Applicable for repairing brake drum/disc of large &medium.vehicles.
Two electric power feed enable infinitely variable
feeding in either direction with high efficiency
Special support enables stability for turning heavy drums.
Two faces of brake disc can be turned simultaneously
C9365A
.Applicable for repairing brake discs of buses & high speed passengers cars.
One electric power feed enable infinitely variable
feeding in either direction with high efficiency.
Two faces of brake disc can be turned simultaneously
Drum diameter mm | C9365A | C9365 |
Disc diameter mm | / | 350-650 |
Rotating Speed of Work-piece r/min | 180-480 | 180-480 |
Max. Travel of cutter mm | 30/49188 | 30/49/88 |
Overall Dimensions(LxWxH)mm | 256 | 256 |
Packing Dimensions(LxWxH)mm | 1320x1200x920 | 1750x1200x920 |
N.W/G.W kg | 1220x1130x1210 | 1220 x1130 x1210 |
Motor Power kw | 4001500 | 480/580 |
| 1.1 | 1.1 |
-
