PHQ50/PHQ160
PHQ-50/160 Dynamic Balancing machine driven by flat Belt, with belt slide guideway frame;
E-mail: sales@apsmachinery.com
Consult Now
Introduction
Accessory
Download
Viedo

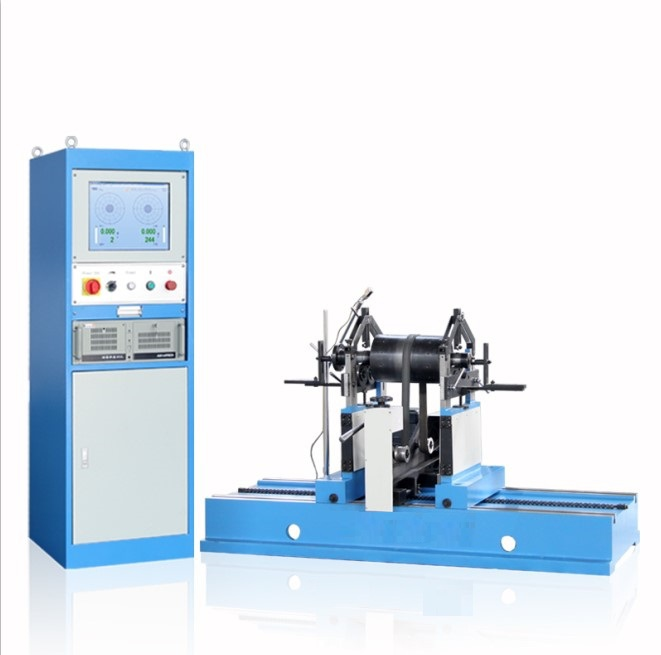

Horizontal Hard Bearing Dynamic Balancer PHQ-50/160
PHQ-50/160 Horizontal Hard Bearing Belt-Driving Dynamic Balancing machine is widely used for balancing rotating workpiece as medium-sized to big-sized V4，V6 ，V8 crankshafts, motor rotors, impellers, turbocharger rotors, rollers, crank shafts and shaft.
Technical Specifications
Model | Unit | PHQ-50 | PHQ-160H |
Monitor |
| JP-580 LCD | JP-580 LCD |
Max weight of workpiece | kg | 50 | 160 |
Min weight of work piece | kg | 2.5 | 2.5 |
Max diameter of workpiece | mm | Φ 700 | Φ 1000 |
Distance between two support bearings | mm | 80-700 | 130-1270 |
Journal diameter scope of workpiece | mm | Φ8~75 Can be add : Φ75-140 | Φ15~75 Can be add : Φ75-180 |
Diameter scope of driving belt | mm | Φ18~200 | Φ40~400 |
Balancing Speed | r/min | 100-2000 r/min (Variable frequency speed regulation) | 756,1176 r/min (Variable frequency speed regulation) |
Motor power | kW | 0.75 | 1.5 |
Min achievable residual unbalance amount | mm/kg | 0.15 | 0.5 |
Imbalance amount (Uneven URR) decrease rate |
| 95% | 90% |
Gross weight | kg | 430 | 650 |
Package dimension (L x W x H) | mm | Case 1: 750x800x1980; Case 2: 1100x900x1300 | Case 1: 750x800x1980; Case 2: 1700x750x1100 |
Power Supply | V, Hz |
| |
- PHQ-50/160 Dynamic Balancing machine driven by flat Belt, with belt slide guideway frame;
- JP-580 Micro-Computer LCD Monitor;
- High precision & efficiency;
- High precision & efficiency;
- Easy to load and unload the test workpiece;
- Wide application & measure range;
High initial unbalance permitted.
PHQ50
PHQ160
