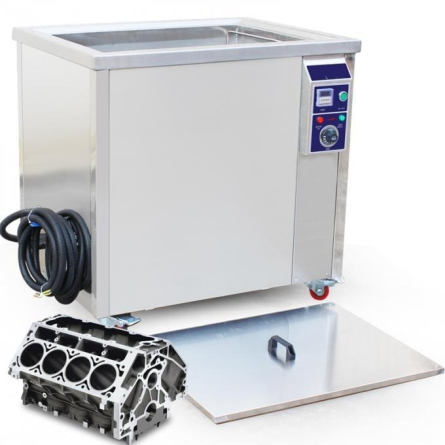

INDUSTRIAL ULTRASONIC CLEANER
High power transducer cleaning effect significantly, usable macroscopic observation;After cleaning objects shine light;
Digital LCD control boot time;
The stainless steel and the lid, bladder, more upscale;Waterproof properties is greatly improved, more safety products last;With constant temperature system with heating.
MODEL | JP-600ST | JP-720ST | JP_1108ST | JP-1144ST |
Tank Dimension(mm) | 800*600*550 | 1000*600*600 | 1000x900x600 | 1200x1000x800 |
Tank total capacity | 264L | 360L | 540L | 960L |
Ultrasonic transducer numbers | 60pcs | 72pcs | 108pcs | 144pcs |
Ultrasonic power | 3000W | 3600W | 0-5400W | 7200W |
Heaters (Hot Plate) Power | 6000W | 9000W | 18000W | 27KW |
Electronic generator | 2 units KG1800 | 4 units KG1800 | ||
Ultrasonic frequency | 40KHZ/28KHZ | |||
Housing material | Stainless steel | |||
Tank material | 2MM SUS304 | |||
Ti000Wontrol | 1S-99Hadjustable | |||
Heating Temp | 20-95Cadiustable | |||
Drain | 1" Valve | |||
Cleaning Tank's Power requirement | AC 380V/415V,3;50/60Hz | |||
Generator power requirement | AC 220V/380V 3phase | |||
Accessory | With basket, lid, frame, wheel(with brake) | |||

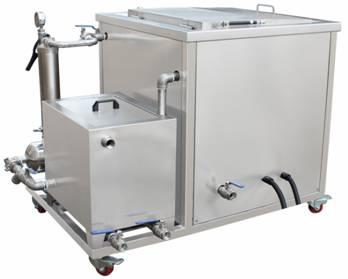

Optional | Oil filter system ,Lifting equipment | |||
-
