CYLINDER HONING MACHINE 3MB9817
3MB9817 is mainly used for honing single line engine cylinders and V-engine cylinders of automobiles motorcycles and tractors
E-mail: sales@apsmachinery.com
Consult Now
Introduction

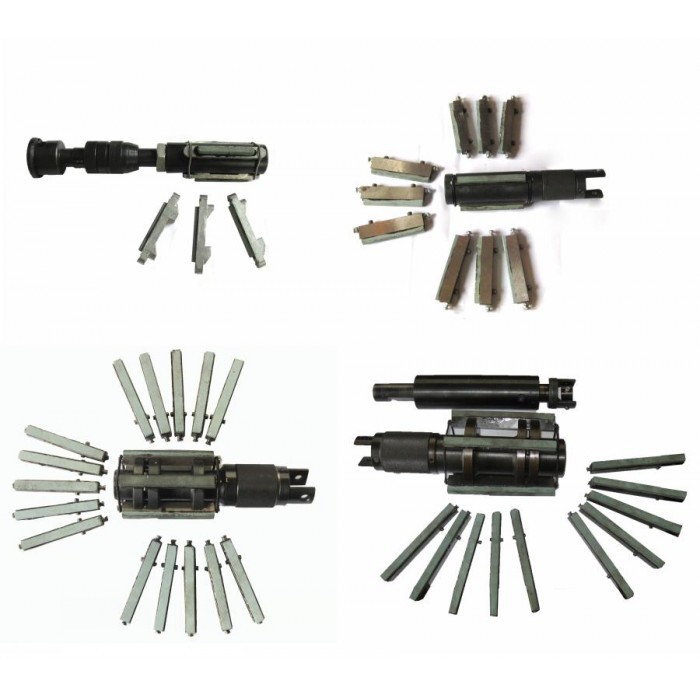

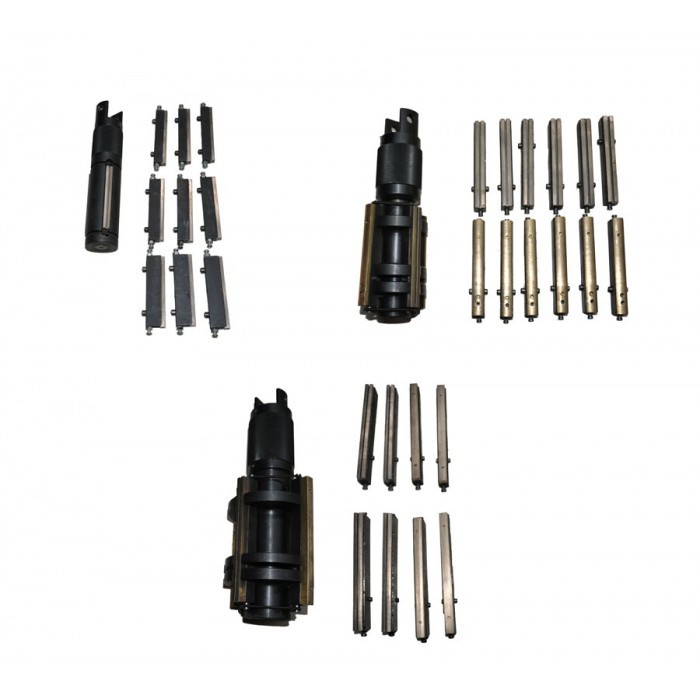

Accessory
Download
Viedo
3MB9817 is mainly used for honing single line engine cylinders and V-engine cylinders of automobiles motorcycles and tractors , and also for other machine element holes.
The machine table can shift of the fixture change0 degree, 30 degree and 45 degree.
The machine table is easily up and down manually0-180mm.
Reverse precision 0-0.4mm
Select mesh-wire degree 0-90 ornon-mesh-wire.
3MB9808 is mainly used for honing engine cylinder of automobiles, motor cycles , cars and tractors , and also for making other machine tools. lt has compact frame, small volume , can operate easily , have manual operator and motor operator. When the main spindle moving up and down, precision of switch direction less than 0.4mm . Good rigidity and amount of cutting.
Model | 3MB9817 |
Max.diameter ofhole honed | 25-170mm |
Max depth ofhole honed | 320mm |
Spindle speed | 120,160,225,290 rpm |
Stroke | 35, 44, 65 s/min |
Power of main motor | 1.5kw |
Power of cooling pump motor | 0.125kw |
Machine working inside cavity dimensions | 1400x870mm |
Overall dimensionsmm | 1640x1670x1920 |
Machine weight | 1000kg |
-
