VALVE SEAT BORING MACHINE BV60S
Valve Seat Boring Machine Model: BV60S uses a compact design and offers a competitive price with its feature and accuracy
E-mail: sales@apsmachinery.com
Consult Now
Introduction

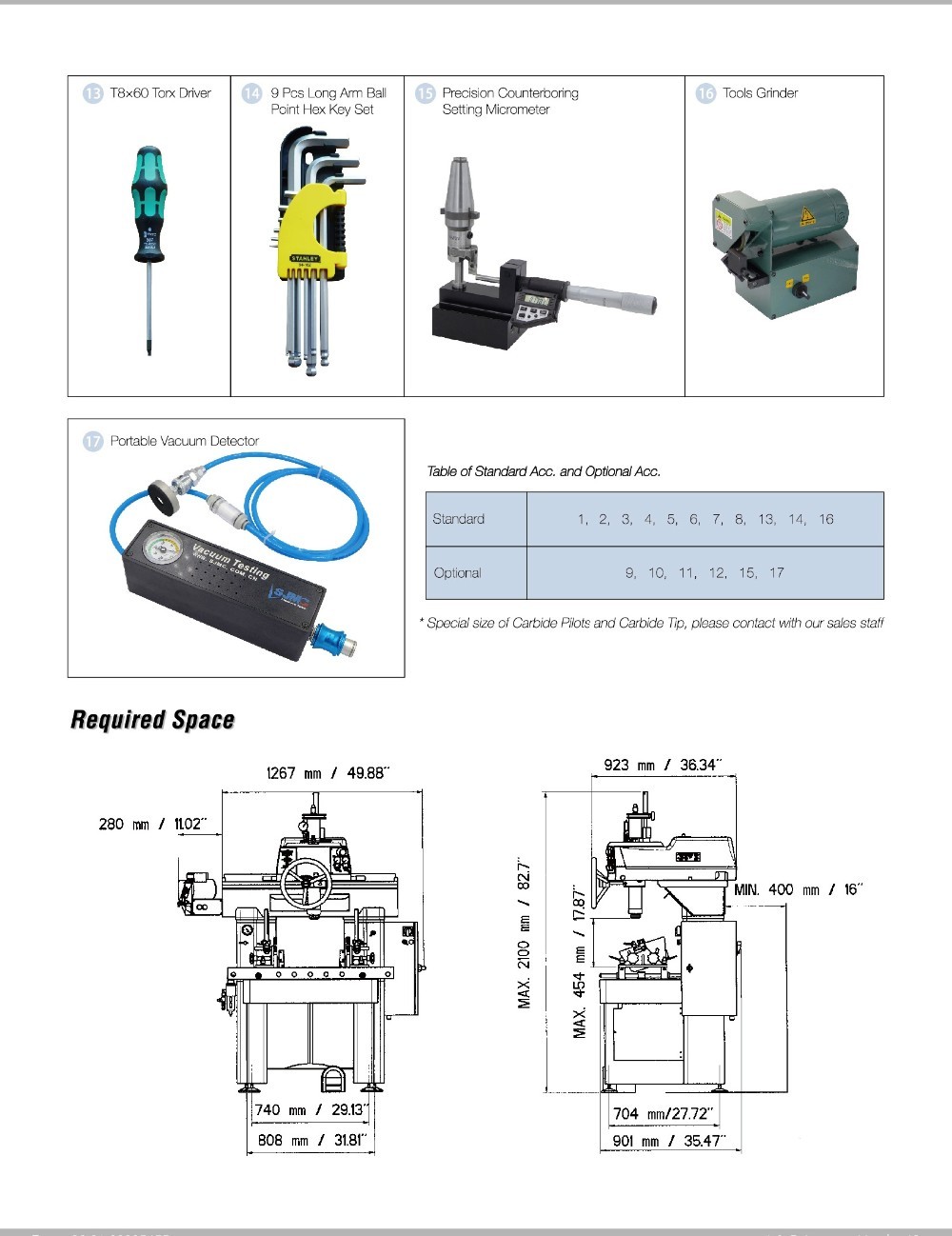

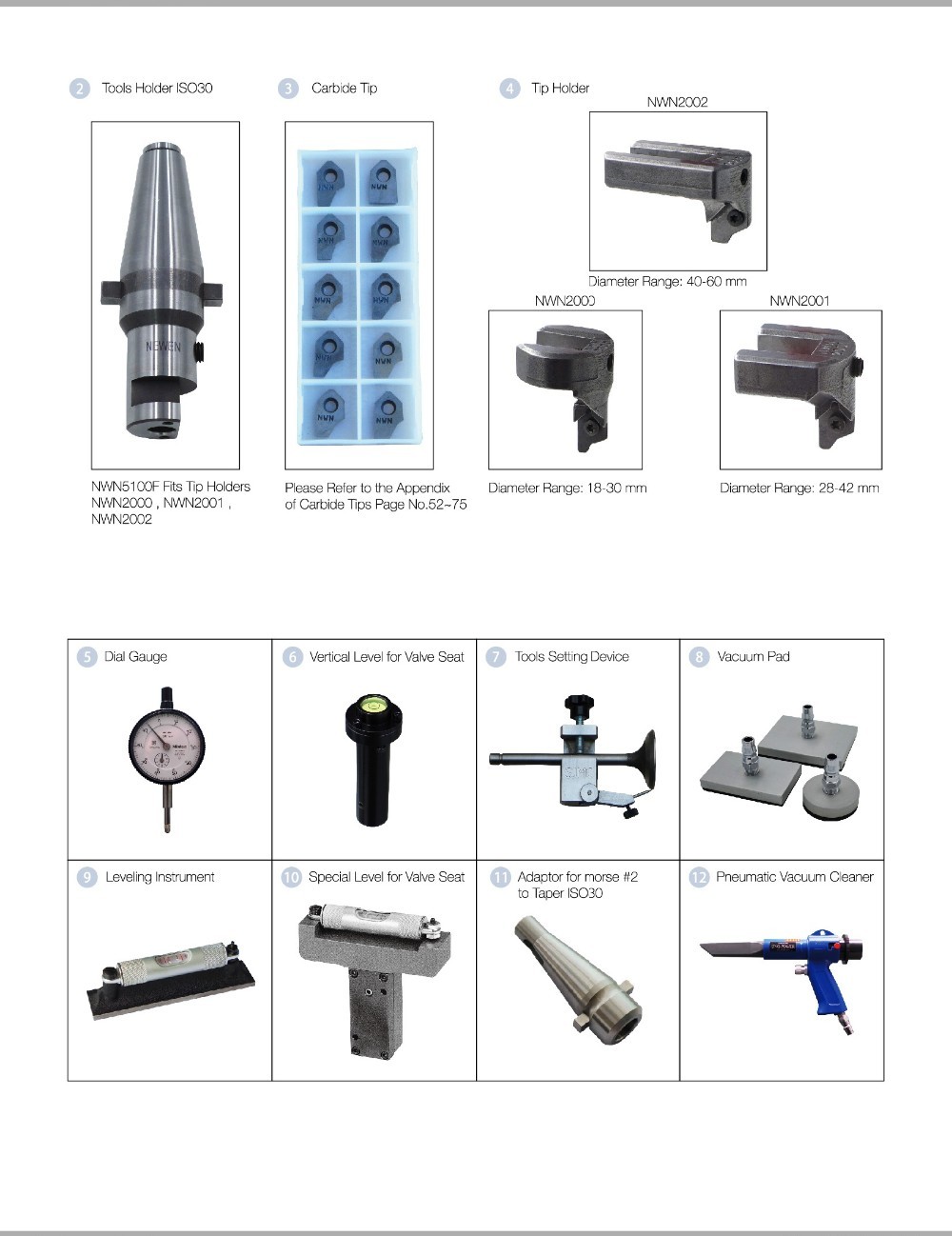

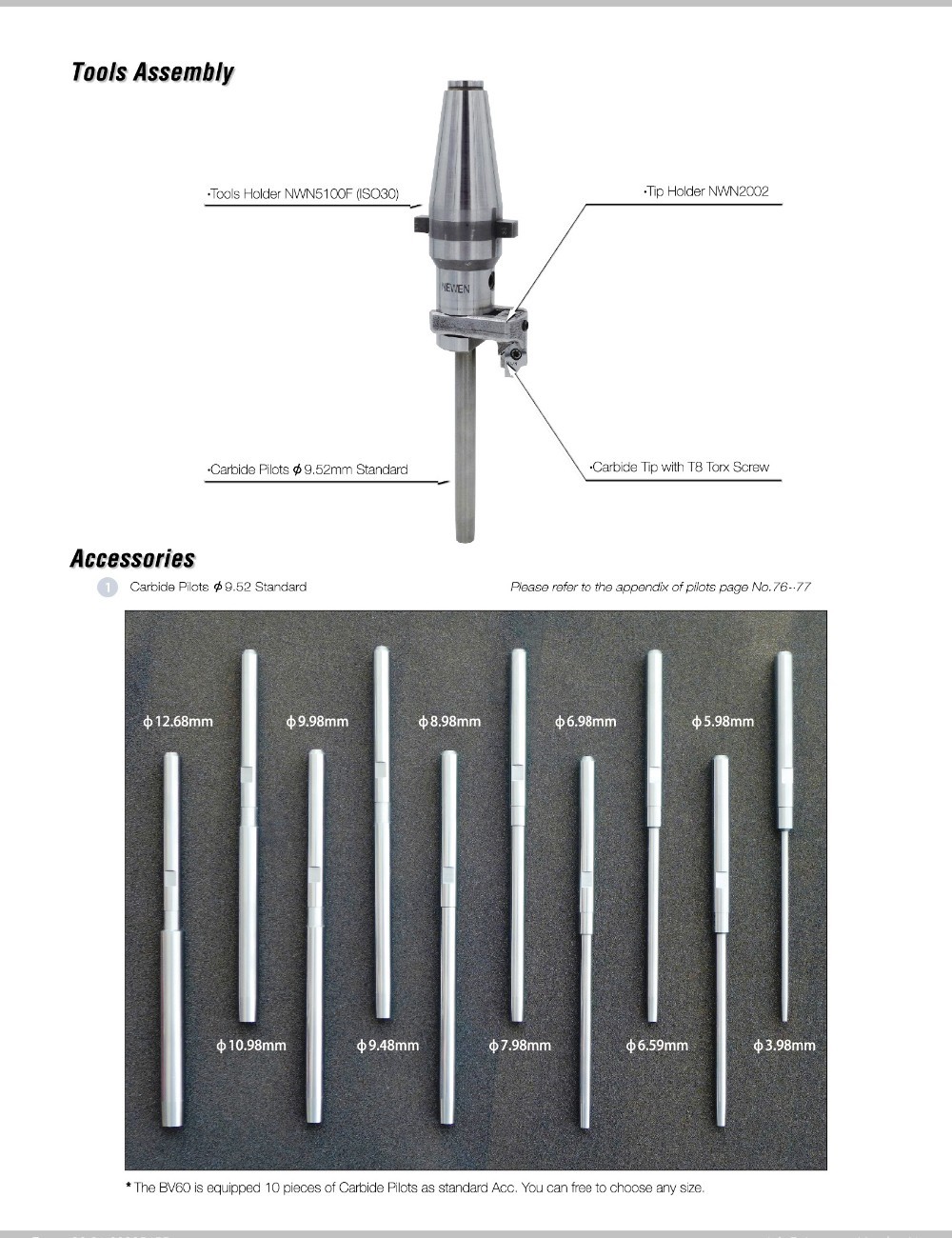

Accessory
Download
Viedo
Valve Seat Boring Machine Model: BV60S uses a compact design and offers a competitive price with its feature and accuracy.lt can easily process six-cylinder heads and light truck heads on vehicles,however.it works best for processing cylinder head of motorcycle and middle size,small size yachts.Nowadays,new snow mobiles with continuous tracks on four-stroke engines,Private jet boats and all terrain cars all use small valves.BV60S can process the valve seats accurately.you can have good surface finish with no chatter mark and perfect concentricity with BV60S.
Model | BV60S |
Type of Drive System | Air /Electric |
Max.Length of Cylinder Head | 1000mm |
Max.Width of Cylinder Head | 420 mm |
Max. Height of Cylinder Head | 170 mm |
Max. Boring Dia. | 14-60 mm |
Work Head Longitudinal Floating Travel | 850 mm |
Work Head Cross Floating Travel | 30 mm |
Sphere-Cylinder Travel | 10 mm |
Floating inclination angle of Spindle | +3° |
Vertical Travel of Spindle | 170 mm |
Power of Spindle | 0.6kW Servo Motor |
Max Torque of Spindle motor | 12Nm |
Spindle Speed | 50-1000rpm stepless |
Power of Tools Grinder | 0.12 kW |
Tools Grinder Rotation Speed | 2800rpm |
Clamper Rotary Angle | 360° |
Required Rated Air Pressure | 5 Bar/73 PSl |
Required Max. Air Flow | 300 L/Min |
Required Continuous Air Flow | 60 L/Min |
Overall dimension of machine(LxWxH) | 1100 x930 x1800 mm |
Roughness of Finishing | Ra 0.6 |
Package Size(LxDxH) | 1620x1040x2200 mm |
N.W./G.W. | 780 Kg/980 Kg |
-
