Optional accessory
+
VERTICALHONING MACHINE VHM170
Diamond honing head MFQZ40(40-62mm)
E-mail: sales@apsmachinery.com
Consult Now
Introduction
Accessory
Download
Viedo

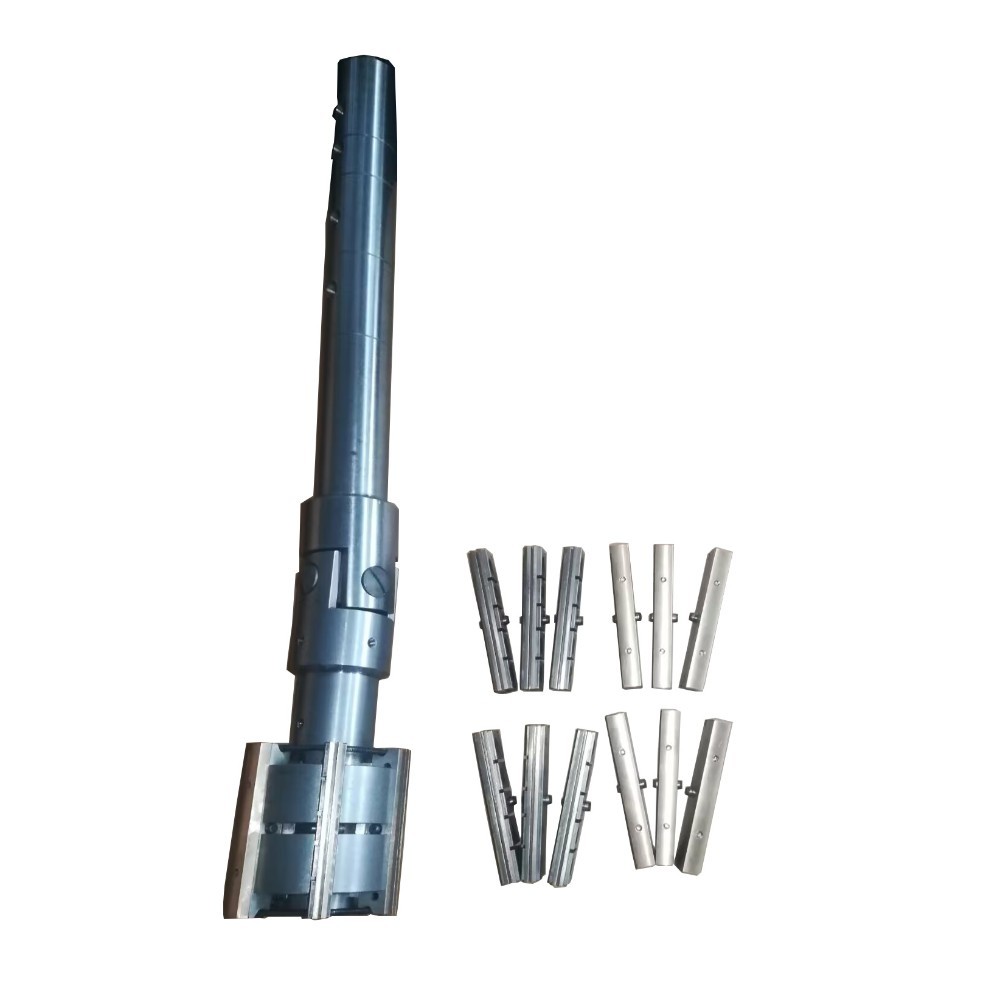

Diamond honing head MFQZ40(40-62mm)

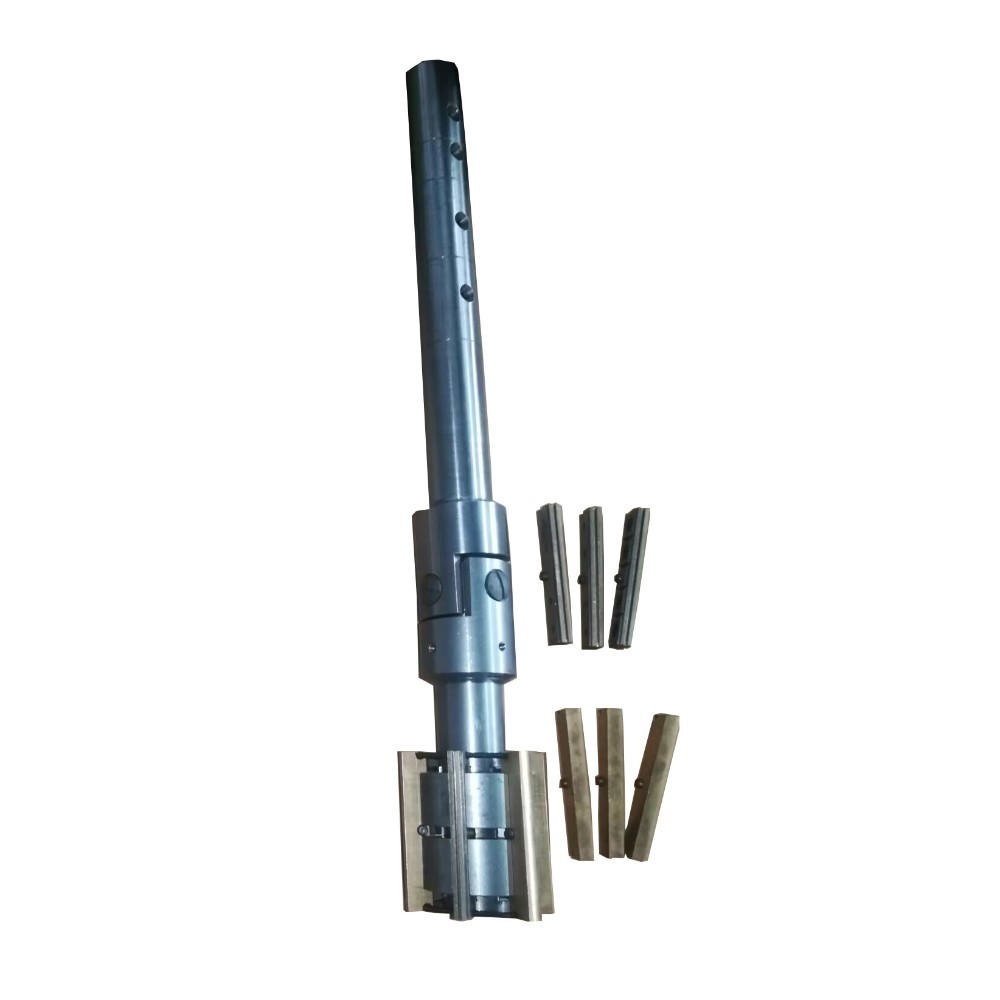

Diamond honing head MFQZ62(62-76mm)

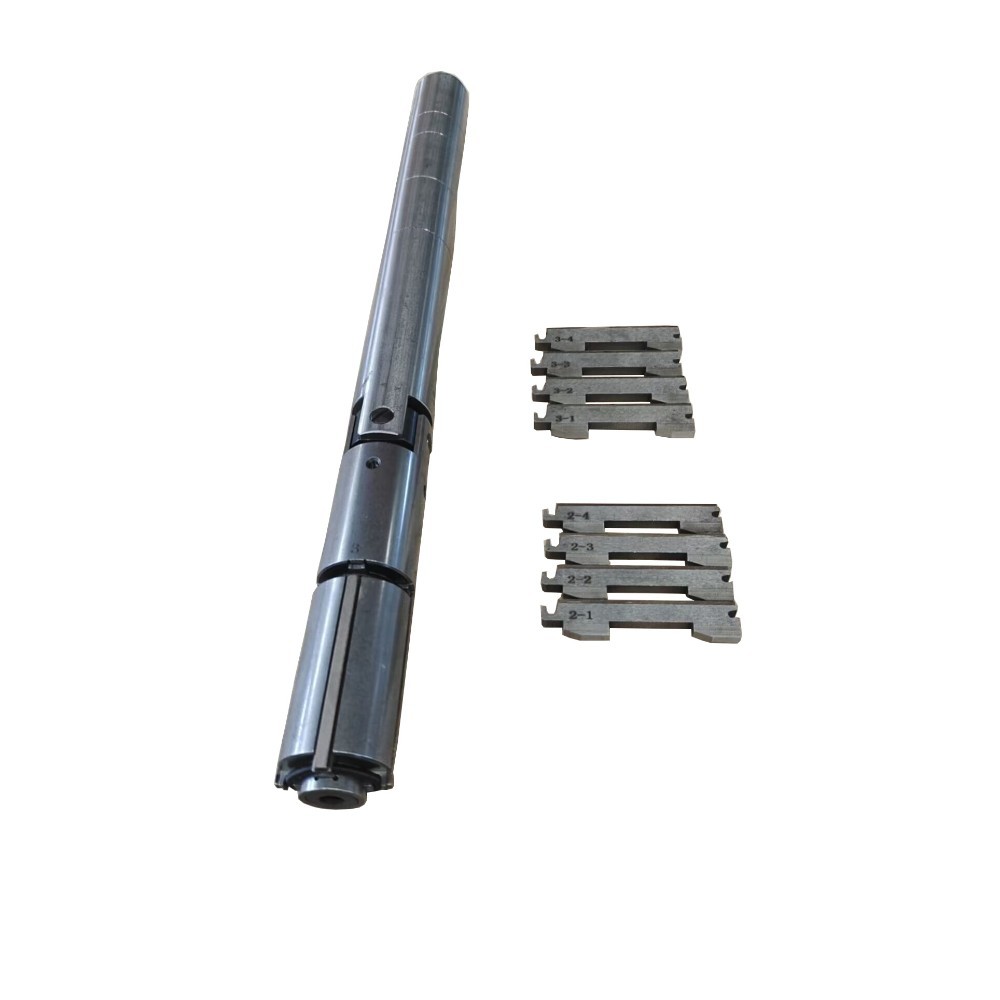

Diamond honing head MFQZ74(75-100mm)
Diamond honing head MFQZ98(98-130mm)
Diamond honing head MFQZ130(130-178mm)
Main specifications
Model | VHM170 |
Diameter of honing hole | 19-203mm(depending on tooling option) |
Max length of honing hole | 450mm(dependingon tooling option) |
Max workpiece size(L*W*H) | 1168*558*673mm |
Max workpiece weight | 680kgs |
Electric motor power ofspindle | 2.2KW |
Rotational speed of spindle | Stepless 300RPM |
Stroker power | 0.75KW |
Speed of spindle | Variable40-80RPM |
Stroke length scope | 0-230mm |
Power of cooling pump | 0.75KW |
Honing Fluid | 200L |
Voltage | 380v/3ph/50hz;optional220V/3ph/50hz |
Overall dimensions(L*W*H)mm | 2318*1835*2197(mm) |
Weight of main machine(approx) | N.W 860kg G.W1130kg |
-
