Main Specification
+
Cylinder head and block resurfacing machine TSM1200
The maximum length of the work piece is1200mm
E-mail: sales@apsmachinery.com
Consult Now
Introduction

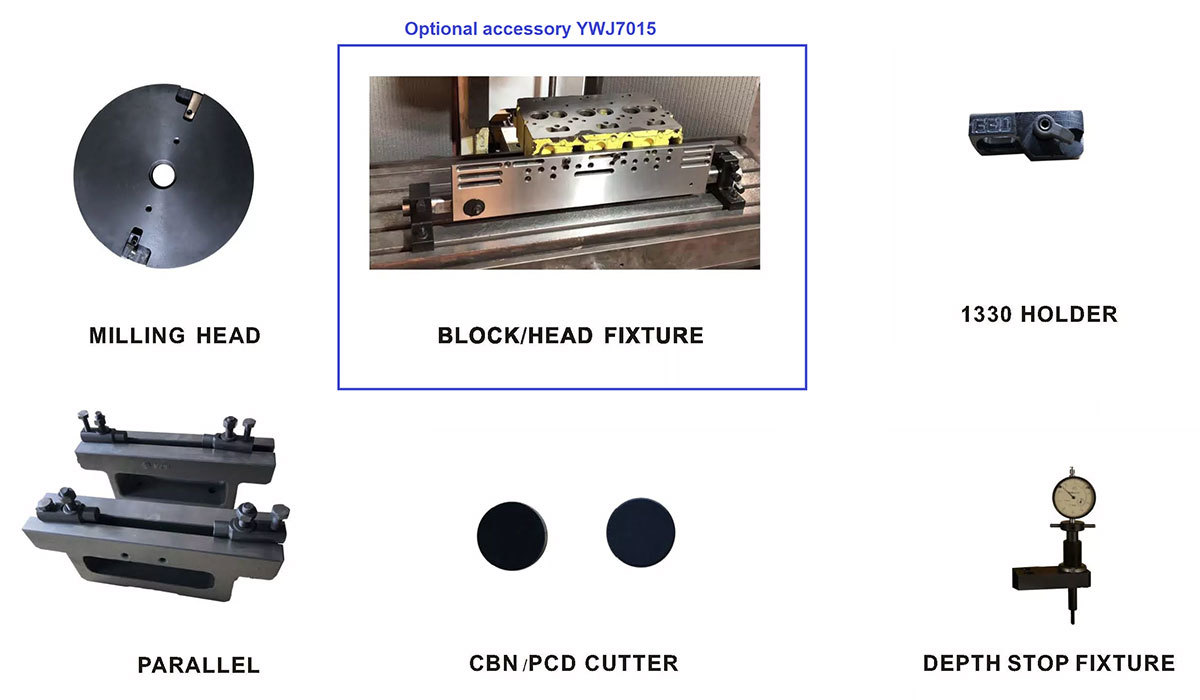

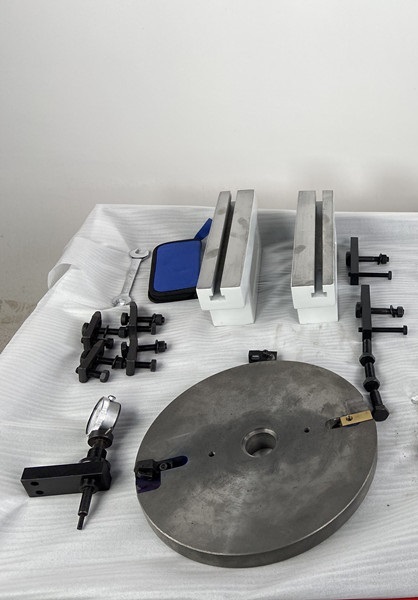

Accessory
Download
Viedo
This machine is designed for plane milling. The maximum length of the work piece is1200mm, and the height is 520 mm. Adjustable speed of the head and table with frequency converters and equipment with CBN and PCD cutters allow the machine to achieve good surface processing results. Low cost makes it an ideal choice for small productions.
Model | TSM1200 | |
Table dimension | 1500x360mm | |
Table travel | 1400mm | |
Max. workpiece lenght | 1200mm | |
Max. workpiece width | 445mm | |
Max. workpiece height | 520mm | |
Min. workpiece height | 260mm | |
Table feed | 0-600mm/min | |
Milling wheel diameter | 400mm | |
Cutting tool speed | 300-1200rpm | |
Fast up and down movement speed | 430mm/min | |
Voltage(+/- 15%) | 220v or 380v | |
Phases | 1ph or 3ph | |
Min.protection degree | IP 44 | |
Main motor power | 2.2kw | |
Gear box motor power | 1.5kw | |
Fast lifting motor power | 0.37kw | |
Total power | 4.1kw | |
Environment conditions | temperature | 10-30°C |
Humidity | 15-90 %RH | |
Net/gross Weight | 1350/1600kg | |
Packing Dimensions length*width*height | 2250x1260x1700mm | |
Classification:
Surfacing
