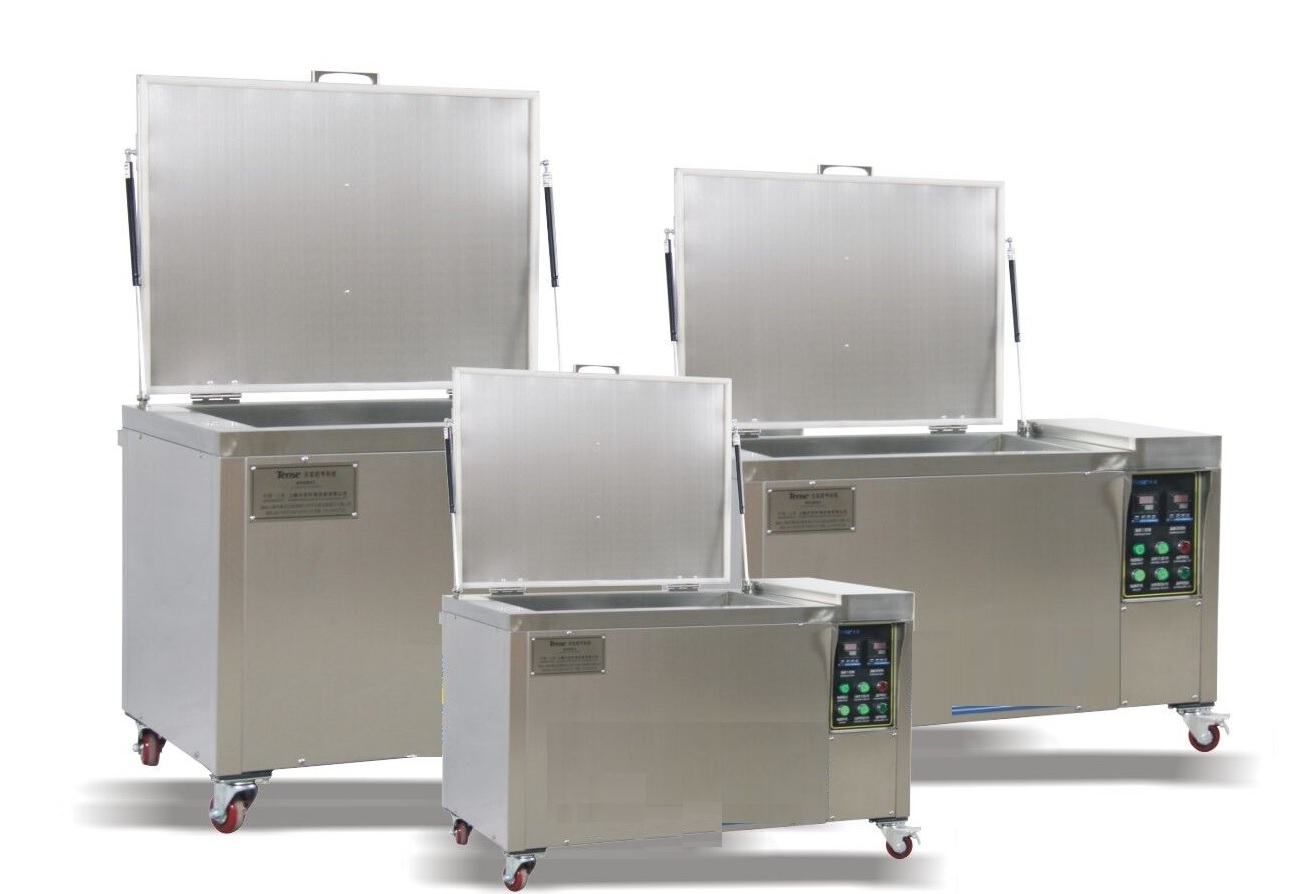

Industrial Ultrasonic Cleaner TS3600A/B ,TS4800A/B,TS6000A/B
Characteristics：

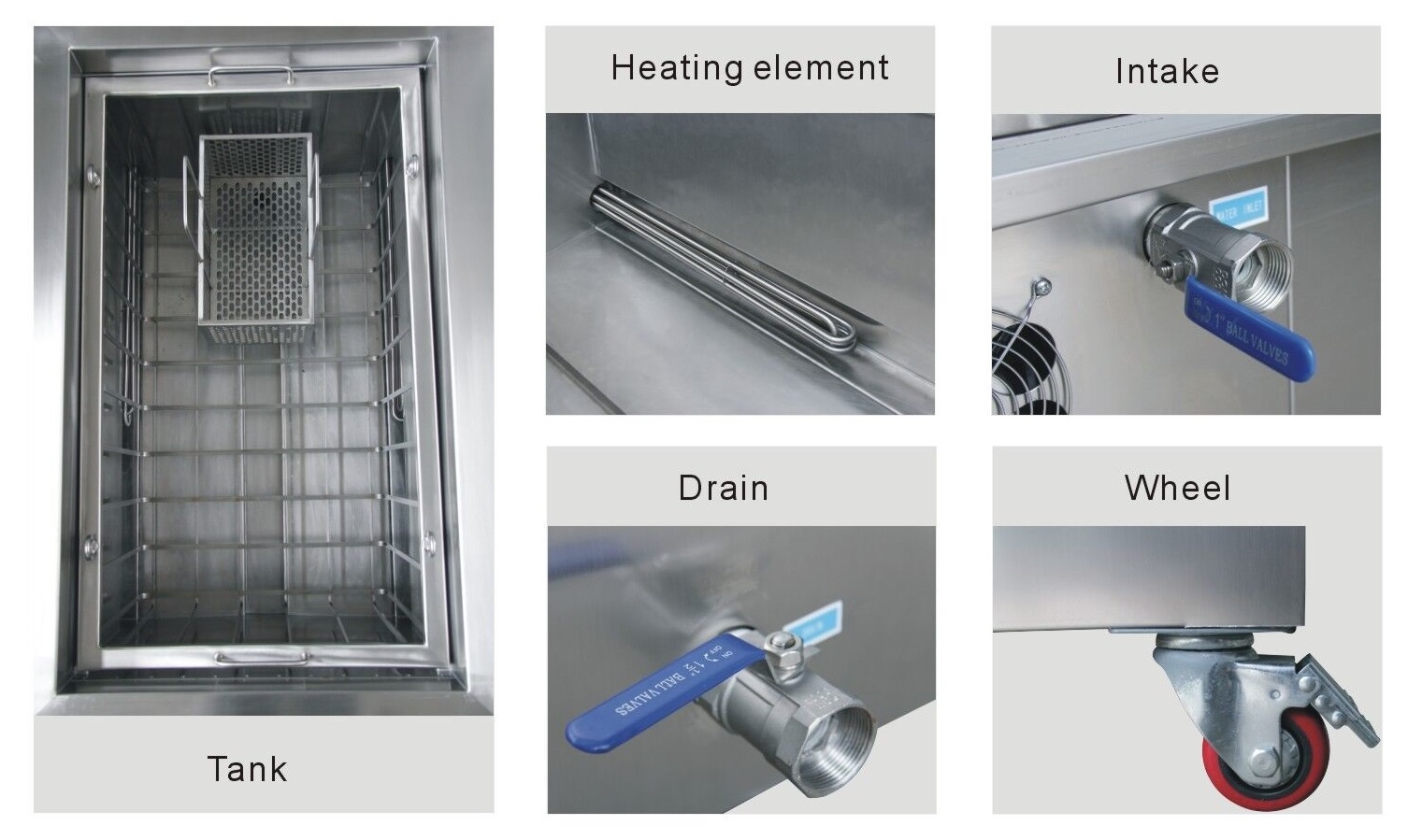

Tank built in SUS304. 2.0mm thick, stainless-steel
Outside panel in SUS304.0.8mm thick, stainless-steel
V-shaped bottom board design
Portable legs
drain, overflow , Intake.
28 Khz ultrasonic frequency
Digital control
Flanged heating tube
1 unit small basket, 1 unit big basket.
Transducer set on bottom and two sides , total three sides
MODEL: | TS3600A/B | TS4800A/B | TS6000A/B | |
Dimension (L*W*H)mm | 1460*1240*920 | 1680*1220*970 | 1880*1440*1100 | |
Tank Dimension (L*W*H)mm | 1000*550*560 | 1200*600*600 | 1400*800*700 | |
Useful size(L*W*H)mm | 915*440*430 | 1120*560*460 | 1260*690*550 | |
Tank total capacity | 308L | 430L | 784L | |
Temperature setting | 0-100C | 0-100C | 0-100C | |

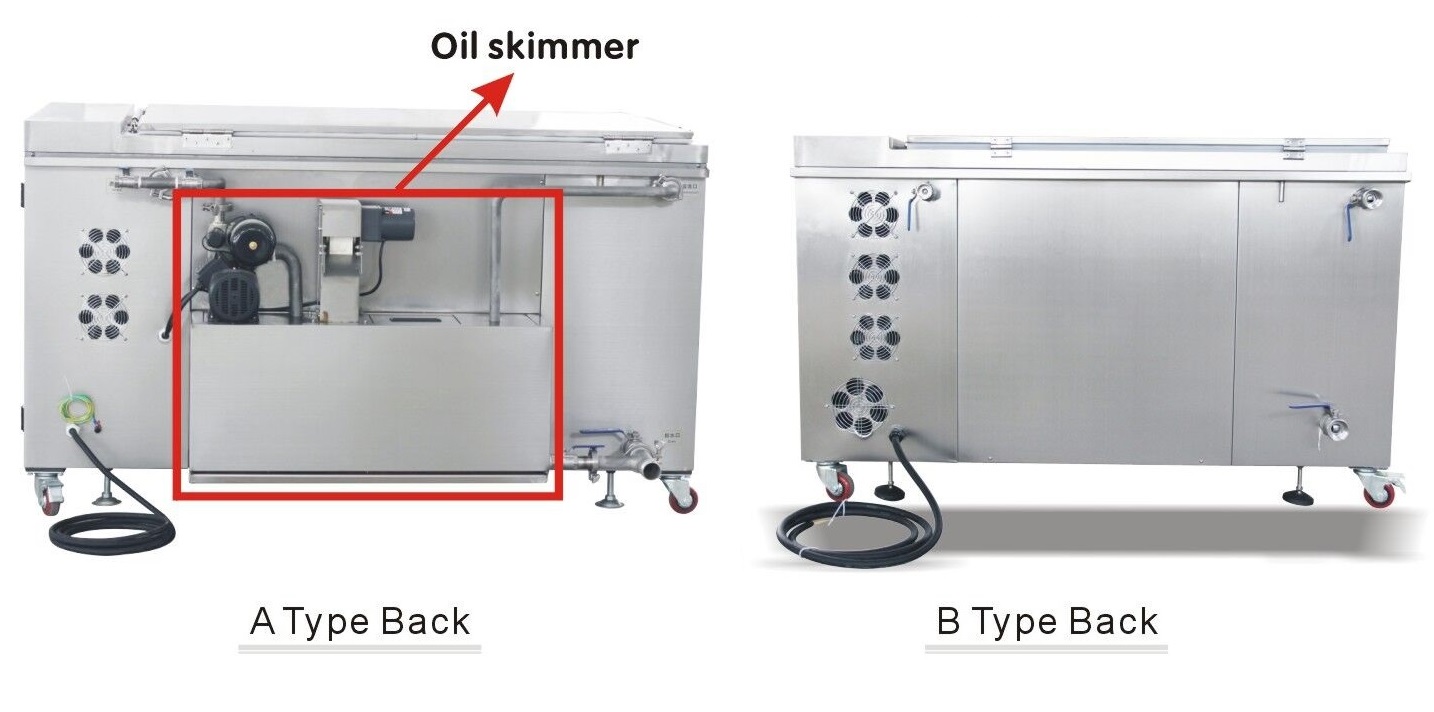

Oil skimmer effect(W) | 25 | 25 | 25 | |
Circulating pump power ( W) | 200 | 200 | 200 | |
Ultrasonic power | 1.8KW | 3.5KW | 5.3KW | |
Heater’s (Hot Plate) Power | 10KW | 10KW | 22KW | |
Net/Gross weight(KGS) | 340/380 | 350/380 | 350/380 | |
Ultrasonic frequency | 28KHZ | |||
Housing material | Stainless steel | |||
Generator power requirement | AC 220V/380V 3phase | |||
-
