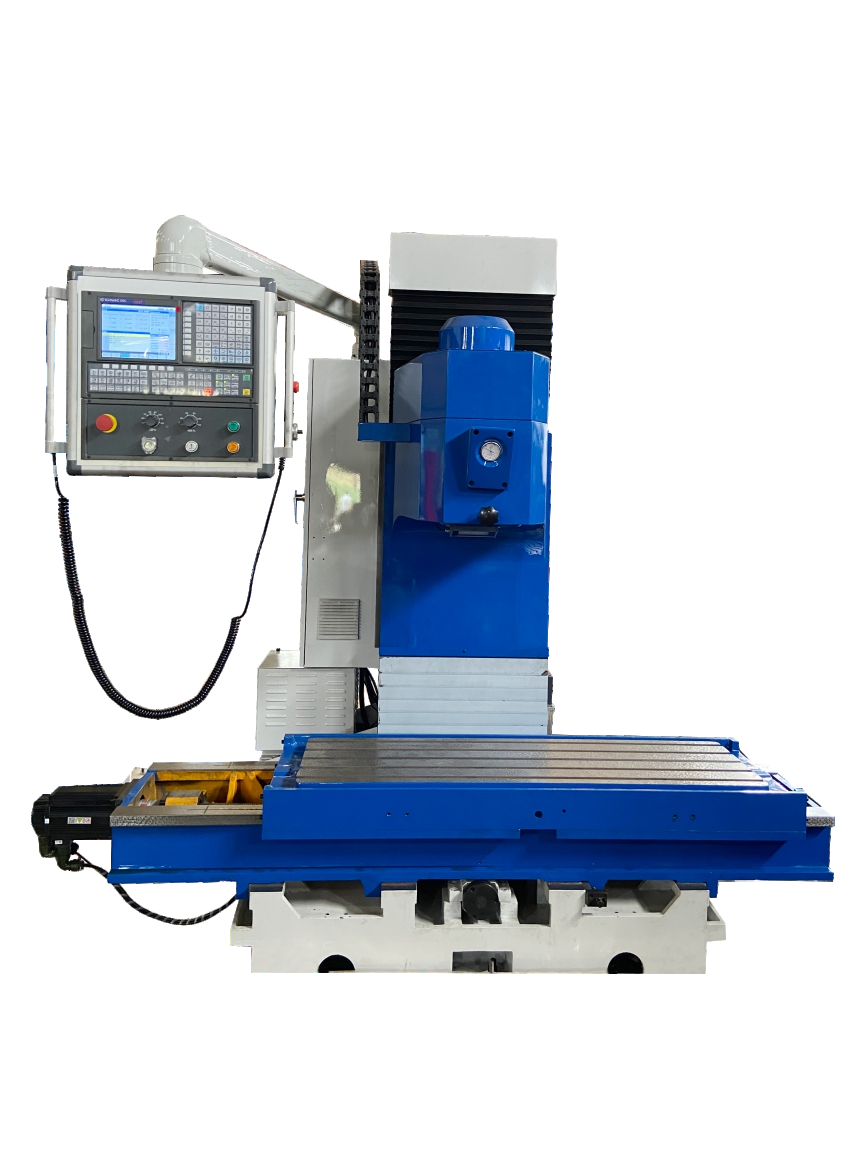

Vertical fine boring & milling machine TX200CNC
This serial model can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel engines and compressors,as well as various high precision holes boring, surface milling grinding of other workpieces.

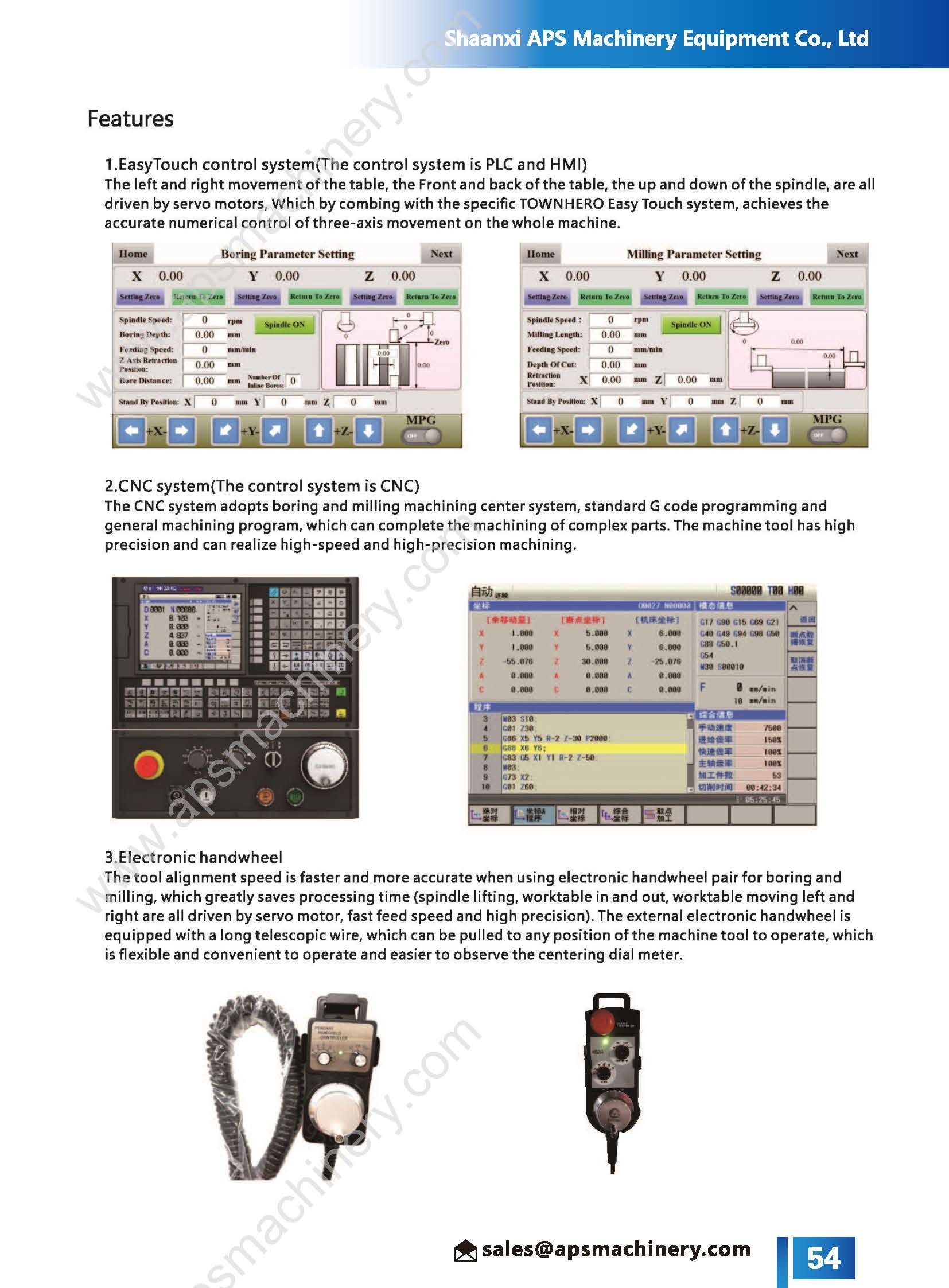

●Stepless of spindle turning ,feeding and table travelling
●Rotating speed and feed of spindle as well as the
movement of worktable is free—setup, automatical
retuming of spindle can be realized
●Longitudingal and cross movement of table
●Complete set of accessories of boring, milling,
drilling & reaming and easy exchange
●Tool fast centering device
●Tool measuring device
●Boring depth control device
●Table with digital readout for jig borer machine
Main specifications
Item | parameter | unit | TX200CNC |
worktable | worktable（LXW） | mm | 1500×500 |
Worktable load weight | Kg | 800 | |
travel | X/Y/Z | mm | 1500×300×750 |
Distance between spindle end and table | mm | 150--900 | |
T slot | size | mm | 5×18 |
Center distance | mm | 80 | |
Spindle | Taper |
|
|
Dis. between spin. axis and carri. Verti. plane | mm | 500 | |
Spindle speed | rpm | 4000 | |
Motor Power | Kw | 5.5 | |
Driving system |
| Belt driving | |
Precision | positioning accuracy | mm | 0.01 |
Repeatability | mm | 0.01 | |
Spindle motor | Motor power | Nm | 15N.m |
Feeding speed | X/Y/Z | mm/min | 0-4000 |
Processing | Boring diameter | mm | 30-200 |
Boring hole accuracy |
| H7 | |
Boring surface roughness of the holes |
| R2.5 | |
Milling surface roughness of the holes |
| R3.2 | |
Max depth of boring | mm | 300 | |
Max milling area | mm | 400×1100 | |
General requirements | Air source need | Kg | 4-6 |
Machine weight | Kg | 5000 | |
Out dimension | mm | 3200X1700X2300 | |
Packing dimenstion | mm | 3200×1900×2300 |

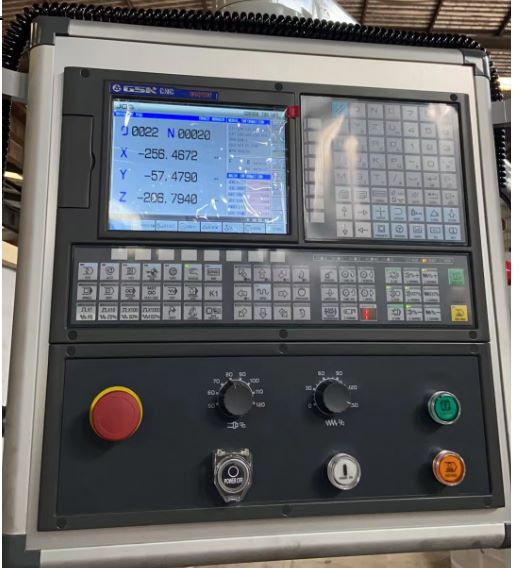

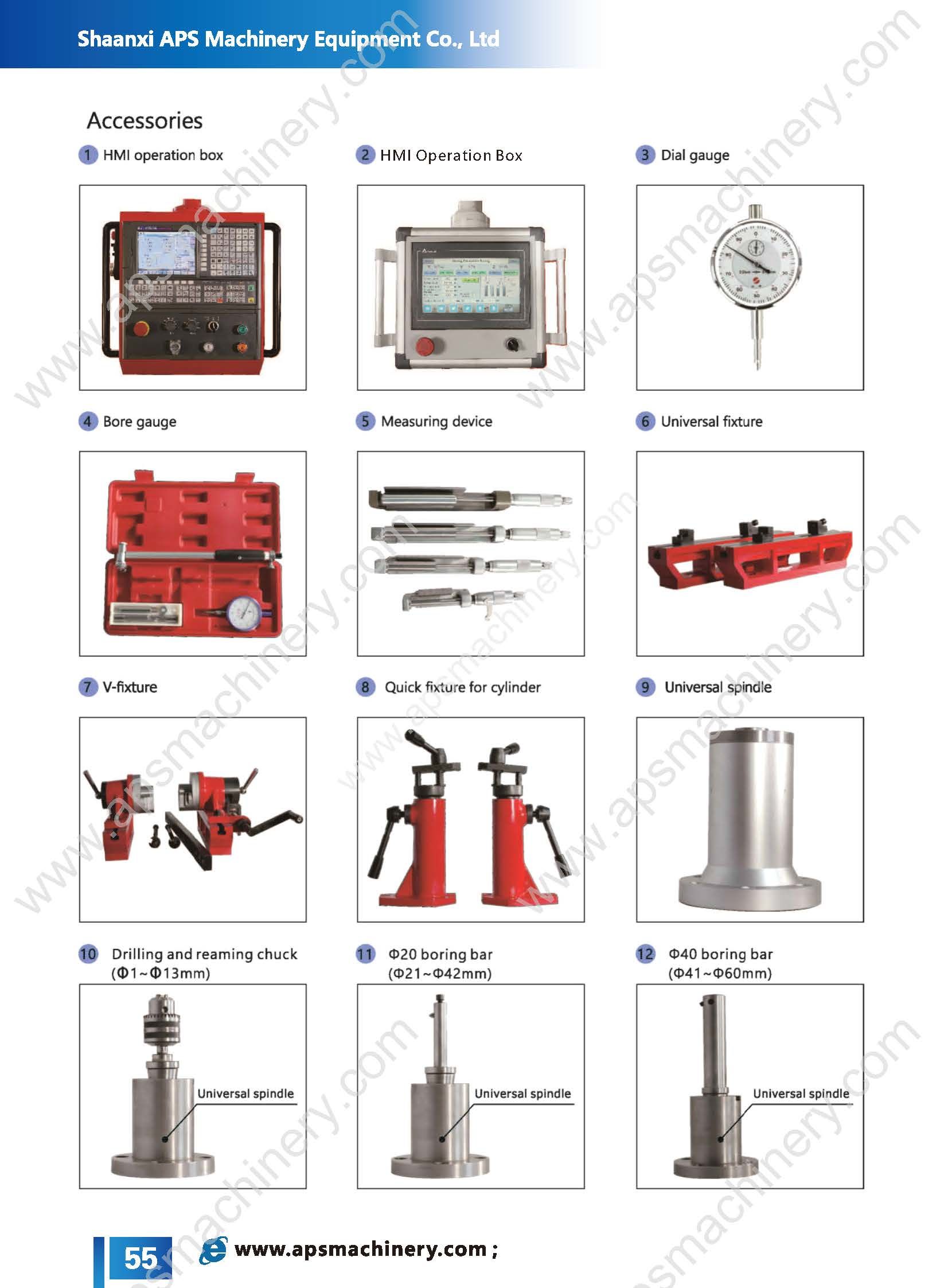

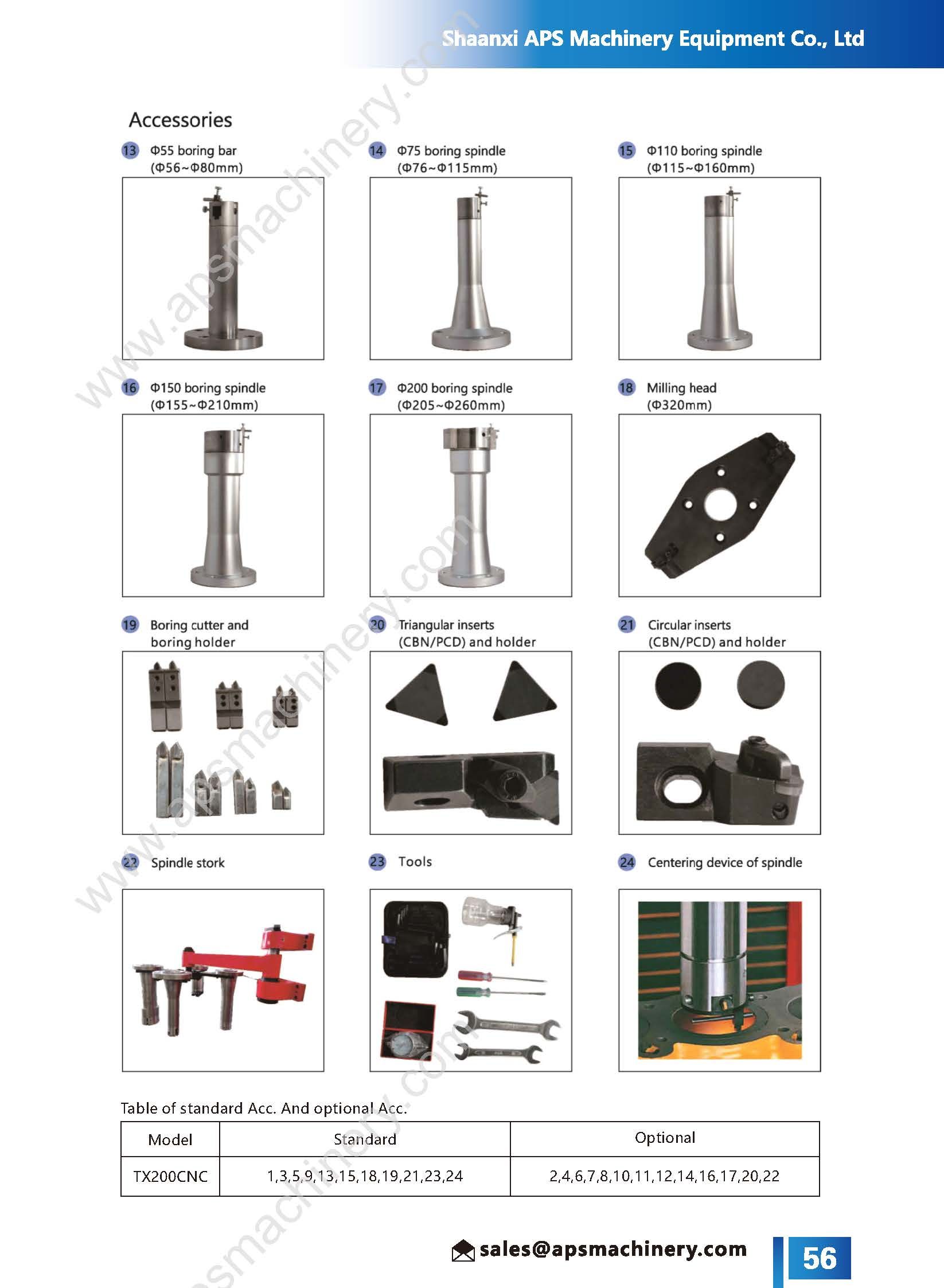

Price included accessory as below:
(Including φ30 boring spindle, φ55 boring spindle, φ75 boring spindle, φ125 boring spindle, φ400 milling cutter head, radio transmission header system (automatic finding center), Taiwan's new generation system, and blade library.
-
