Valve Seat Boring Machine BV90
Valve Seat Boring Machine Model: BV90 with high availability meets the requirements of boring
E-mail: sales@apsmachinery.com
Consult Now
Introduction

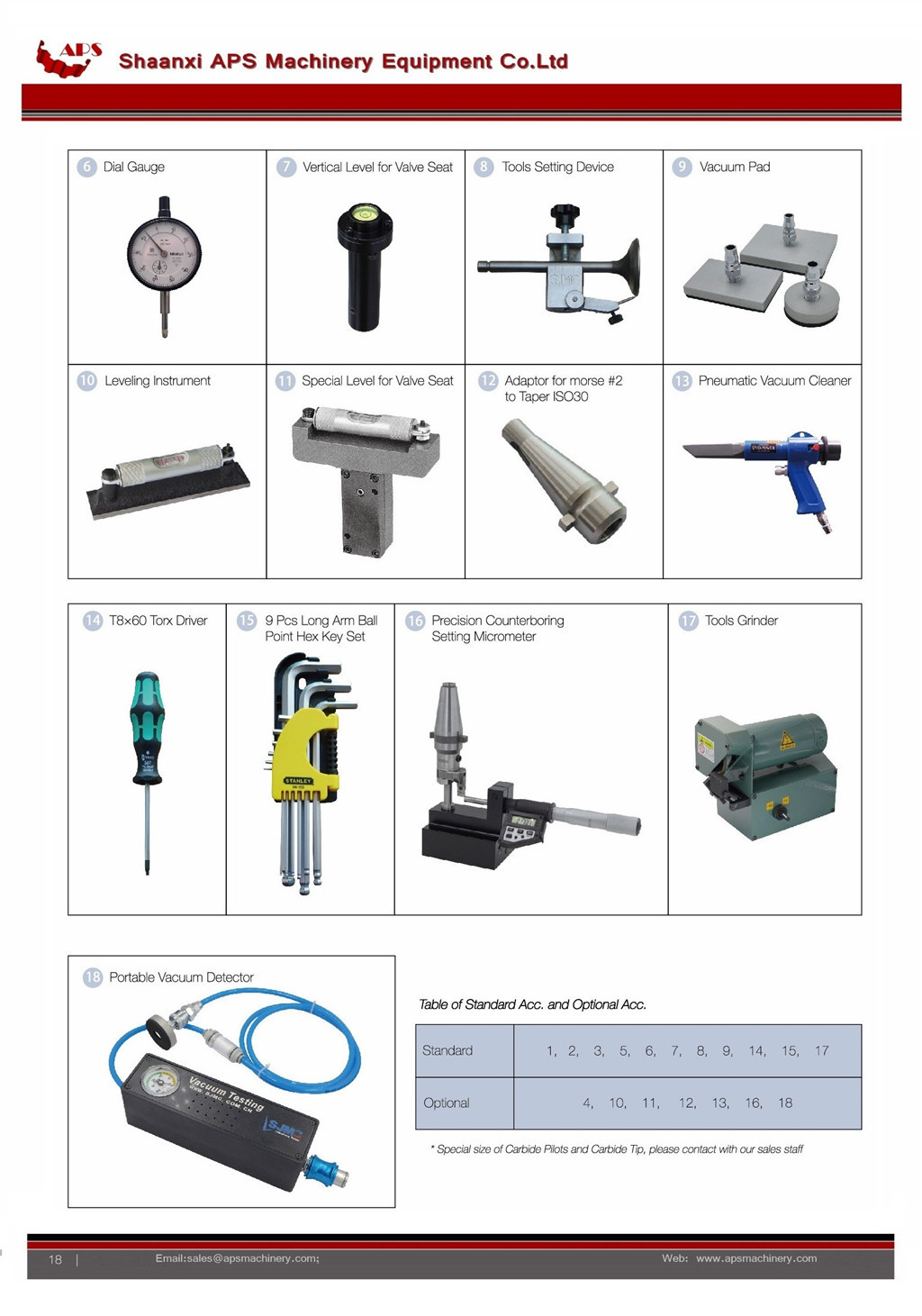

Accessory
Download
Viedo
Valve Seat Boring Machine Model: BV90 with high availability meets the requirements of boring.reaming and cutting machining for high accuracy valve guides and valve seats. Triple air flotation patented and powerful spindle with built-in-motor,Designed for valve seat from the smallest to the bigger diameter. This machine can repair any existing engine,from the mirco-engine up to the big stationary engine.matching capacity from 18mm to 9Omm. To reach the requirements of high precision machining for valve guides with a small diameter of 4mm.
Model | BV90 |
Type of Drive System | Air / Electric |
Max.Length of Cylinder Head | Unlimited |
Max. Width of Cylinder Head | 500 mm |
Max. Height of Cylinder Head | 450 mm |
Max. Boring Dia. | 18-90 mm |
Work Head Longitudinal Floating Travel | 990 mm |
Work Head Cross Floating Travel | 40 mm |
Sphere-Cylinder Travel | 9 mm |
Floating inclination angle of Spindle | ±5° |
Vertical Travel of Spindle | 160 mm |
Power of Spindle | 1.8kW Servo Motor |
Max Torque of Spindle motor | 25Nm |
Spindle Speed | 50-80elpmstepless |
Power of Tools Grinder | 0.18 kw |
Tools Grinder Rotation Speed | 2800 rpm |
Clamper Rotary Angle | + 42°1-15° |
Required Rated Air Pressure | 6 Bar/ 85 PSI |
Required Max. Air Flow | 400 L/ Min |
Required Continuous Air Flow | 60 L/ Min |
Overall dimension of machine(LxWxH) | 1685 x1050 x2180 mm |
Roughness of Finishing | Ra 0.6 |
Package Size(LxDxH) | 1860x1150x2200 mm |
N.W.I G.W. | 1500 Kg/1800 Kg |
-
