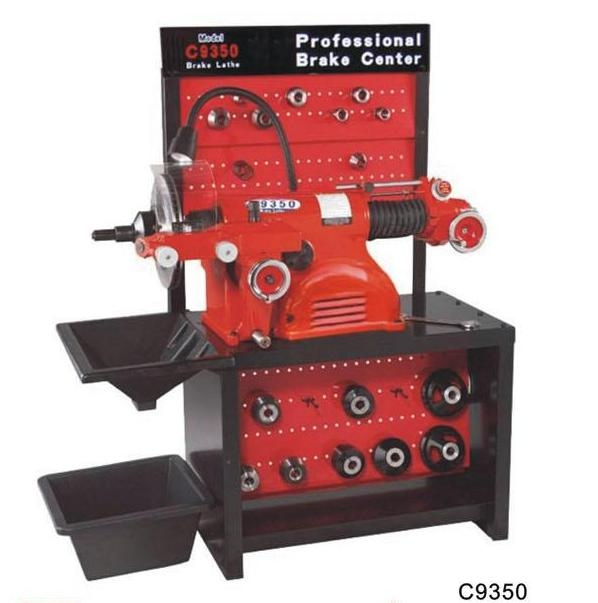

Brake Drum/Disc Cutting Machine

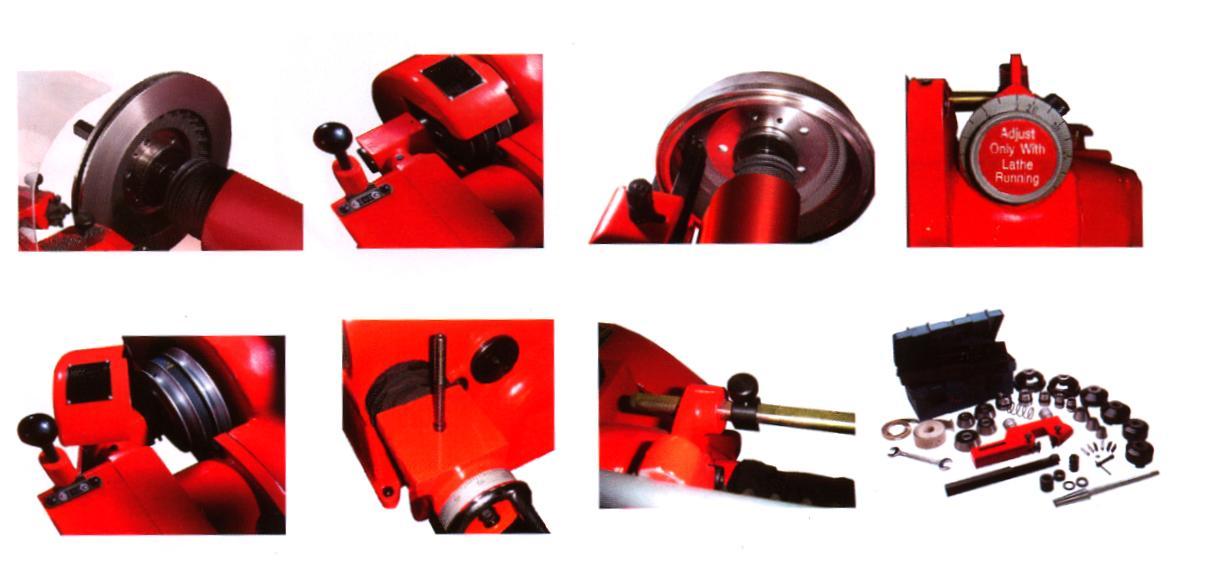

*Quickly, accurately and efficiently to cutting rotor;
*Fast and slow setting allow cutting rotor;
*Quick, accurately and efficiently to cutting drum;
*Finitely adjustably setting allow cutting drum;
*Three kinds of speed to choice for spindle speed;

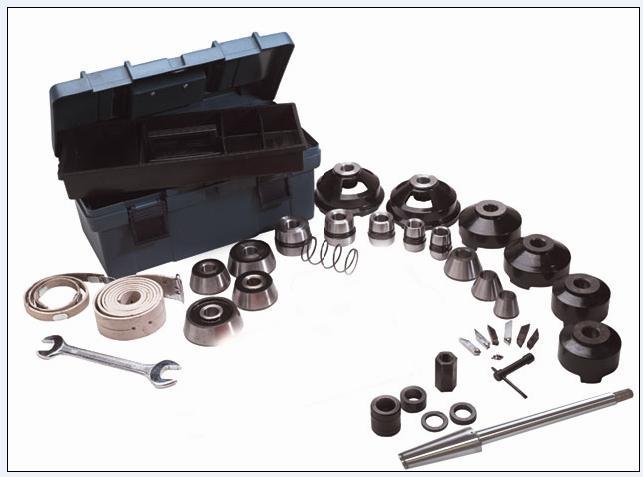

*Fully equipped adapter package.
*A convenient design allows to quickly change
from rotor to drum;
*Position of stop make the lathe stop automatic
after the cutting;
C9350 | C9370 | C9372 | |
Spindle Travel | 175mm | 251mm | / |
Spindle Speed | 70, 80, 118rpm | 70,88,118 rpm | 70-320rpm |
Spindle Feed Speed | Min 0.05mm/rev | Min 0.05mm/rev | Rotor and drum feed rates 0mm-0.66mm |
Max 0.5mm/rev | Max 0.5mm/rev | ||
Cross Feed Speed | Min 0.05mm/rev | Min 0.05mm/rev | |
Max 0.5mm/rev | Max 0.25mm/rev | ||
Handwheel Graduations | 0.05mm | 0.05mm | |
Rotor Diameter | 180-381mm | 180-457mm | 102mm-610mm |
Rotor Thickness | 48mm | 102mm | 73mm |
Drum Diameter | 152-711mm | 152-711mm | 152-711mm |
Drum Depth | 175mm | 251mm | 229mm |
Motor | 1PH 110V/220V 50/60HZ , 3PH 380V 50/60HZ | 1PH 110V/220V 50/60HZ | |
Gross Weight | 290kg | 400kg | 300kgs |
Dimension | 970x920x1140mm | 1100x1070x1140mm | 1130×1720×1750mm |
-
