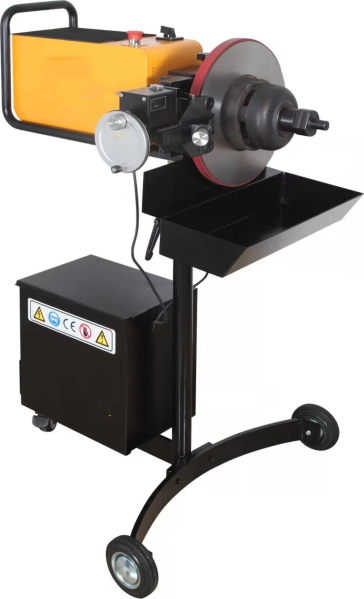

On Car Brake Disc Lathe - AM-8700/8700S
Product model | AM-8700 | AM-8700S |
Working height min/max | 0.78/1.2m | 0.4/0.7m |
Max diameter of brake disc | 400mm | 400mm |
Thickness of brake disc | 6-40mm | 6-40mm |
Drive speed | 150rpm | |
Motor power | 450/750W | |
Electrical specifications | 220v/50Hz 110V/60Hz | |
Weight | 55kg | |
Ambient temperature range | -30 to 60°c | |
Cutting depth per knob | 0.005-0.015mm | |
Cutting precision | ≤0.00-0.003mm | |
Brake disc surface roughness Ra | Ra 1.5-2.0µm | |
Packing size | 110*53*34cm | 110*53*34cm |
Net/Gross weight | 70/73kgs | 65/70kgs |

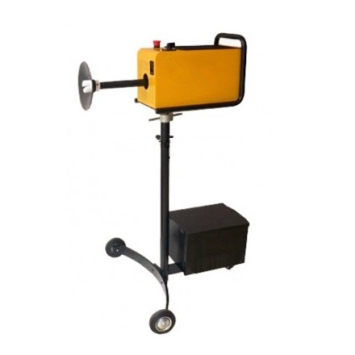

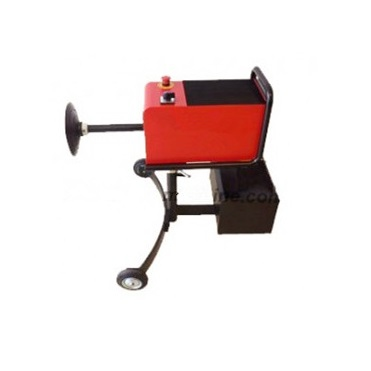

On Car Brake Disc Lathe - AM983/983S
Main specifications
Product model | AM-983 | AM-983S |
Working height min/max | 0.78/1.2m | 0.4/0.7m |
Max diameter of brake disc | 500mm | 500mm |
Thickness of brake disc | 6-40mm | 6-40mm |
Drive speed | 150rpm | |
Motor power | 750W | |
Electrical specifications | 220v/50Hz 110V/60Hz | |
Weight | 55kg | |
Ambient temperature range | -30 to 60°c | |
Cutting depth per knob | 0.005-0.015mm | |
Cutting precision | ≤0.00-0.003mm | |
Brake disc surface roughness Ra | Ra 1.5-2.0µm | |
Packing size | 91*51*31cm | 91*51*31cm |
Net/Gross weight | 118/128kgs | 118/128kgs |
-
