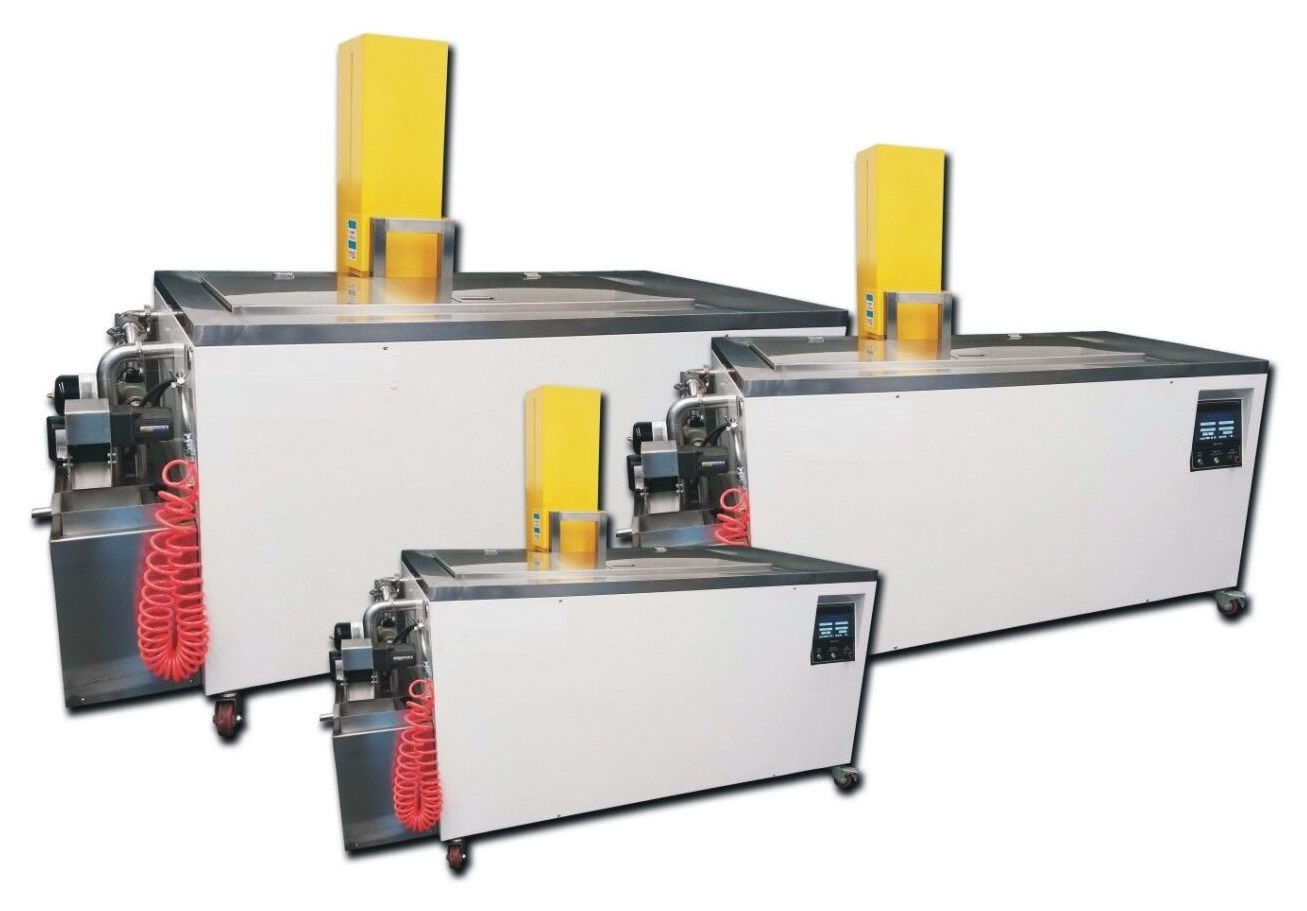

Industrial Ultrasonic Cleaner TS-UD series
Characteristics：

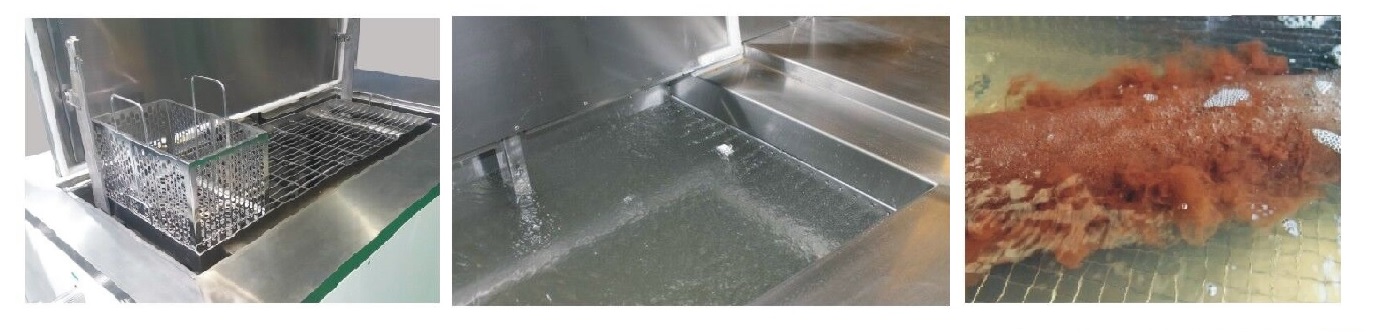

Tank built in SUS304. 1.2~2.0mm thick, stainless-steel
The PLC controls the entire cleaning process.
insulation could rise to the effect of thermal insulation
Lifting platform
Agitation function during its work imporve cleaning effect
Intake, drain, overflow
vibrating box design easy to repair
oil skimmer-remove dirty from water surface
Filter
Air gun design can quickly dry the surface of the parts after cleaning Adjustable legs
MODEL: | TS-UD300 | TS-UD600 | TS-UD800 | TS-UD1500 | TS-UD2000 |
Tank total capacity | 381L | 568L | 896L | 1620L | 2333L |
Tank inner size (L*W*H)mm | 1200*600*520 | 1400*700*580 | 1600*800*700 | 1800*1000*900 | 2100*1100*1010 |
Useful size(L*W*H)mm | 1100*500*420 | 1300*600*480 | 1500*700*560 | 1700*900*800 | 2000*1000*900 |
Ultrasonic power | 3.6KW | 5.5KW | 8KW | 15KW | 20KW |
Ultrasonic frequency | 28KHZ | 28KHZ | 28KHZ | 28KHZ | 28KHZ |
Heater’s (Hot Plate) Power | 10KW | 22KW | 22KW | 22KW | 30KW |
Lift platform(mm) | 1100*500 | 1300*600 | 1500*700 | 1700*900 | 2000*1000 |
Load capacity | 300kgs | 400 kgs | 600 kgs | 1000 kgs | 1200 kgs |
Agitation space | 50mm | 50mm | 150mm | 150mm | 150mm |
Oil skimmer effect | 25W | 25W | 25W | 25W | 25W |
Circulation pump power | 200W | 200W | 200W | 200W | 200W |
Filter | 30μm | 30μm | 30μm | 30μm | 30μm |
PLC touch screen | 7” | ||||
Housing material | Stainless steel | ||||
Generator power requirement | AC 220V/380V 3phase | ||||
-
