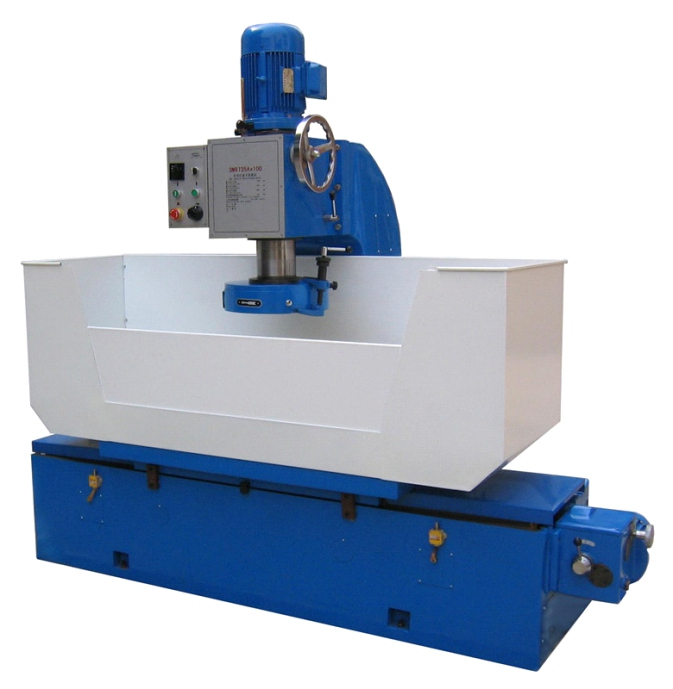

Cylinder Block Surface Grinding & Milling Machine 3M9735A
1. This machine is a vertical grinding and milling machine, with high grinding efficiency and accurate.
2. The table movement of this machine is driving by gear motor and ball screw , stepless speed frequency control, convenient and stable adjustment.
3. coupled with special fixtures to achieve multi-angle grinding cylinder and head.
4. The casting part of this machine is resin sand casting, deformation is small neat appearance.
Technical parameter
1.700 rpm high velocity milling and step-less speed regulation for feeding by frequency conversion control,high smooth surface of machining , suitable for aluminum alloy cylinder body.
2.1400 rpm high velocity grinding , precision feeder , suitable for cast-iron cylinder body.
Main specifications
MODEL | 3M9735Ax100 | 3M9735Ax130 | 3M9735Ax150 |
Workbench dimension | 1000X500mm | 1300X500mm | 1500X500mm |
Max working length | 1000mm | 1300mm | 1500mm |
Max working width | 350mm | 350mm | 350mm |
Max working height | 600mm | 600mm | 600mm |
Workbench moving speed | 0-300r/min | ||
spidle box travel | 120mm | ||
number of segments | 10piece | ||
Emery wheel disk diameter | 360mm | ||
The speed of revolution of main motor | 1400/700r/min | ||
Motor power | 1.5KW/2.4KW | ||
N.W/G.W | 2.1T/2.4T | 2.4T/2.6T | 2.4T/2.6T |
Outline dimension | 2500X1130X2230mm | 3100X1130X2230mm | 3100X1130X2230mm |
-
