VERTICAL AIR-FLOATING FINE BORING MACHINE TB8016
The machine is mainly used for reboring single line cylinders and V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.-Reliable performance, widely use, processing accuracy, high productivity.
-Easy and flexible operation
-Air-floating location quick and precise, automatic pressure.
-Spindle speed is suitability
-The tool setting and measuring device.
-There is a vertical measuring device.
-Good rigidity, amount of cutting.
Main specifications：
Model | TB8016 | |
Boring diameter | 39-160mm | |
Max boring depth | 320 mm | |
Boring head travel | Longitudinal | 1000 mm |
Transversal | 45 mm | |
Spindle speed(4 steps) | 125,185,250,370 r/min | |
Spindle feed | 0.09mm/s | |
Spindle quick reset | 430,640 mm/s | |
Pneumatic pressure | 0.6< P<1 | |
Motor output | 0.85/1.1 KW | |
V_block fixture patented system | 30°45° | |

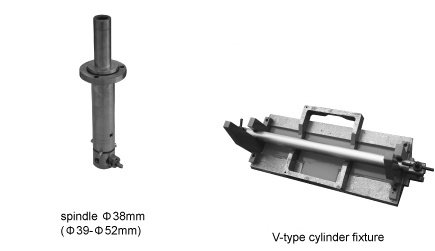

V-block fixture patented system(Optional accessories) | 30 degree, 45 degree | |
Overall dimensions | 1250x1050x1970 mm | |
Machine weight | 1300 kg | |
-
