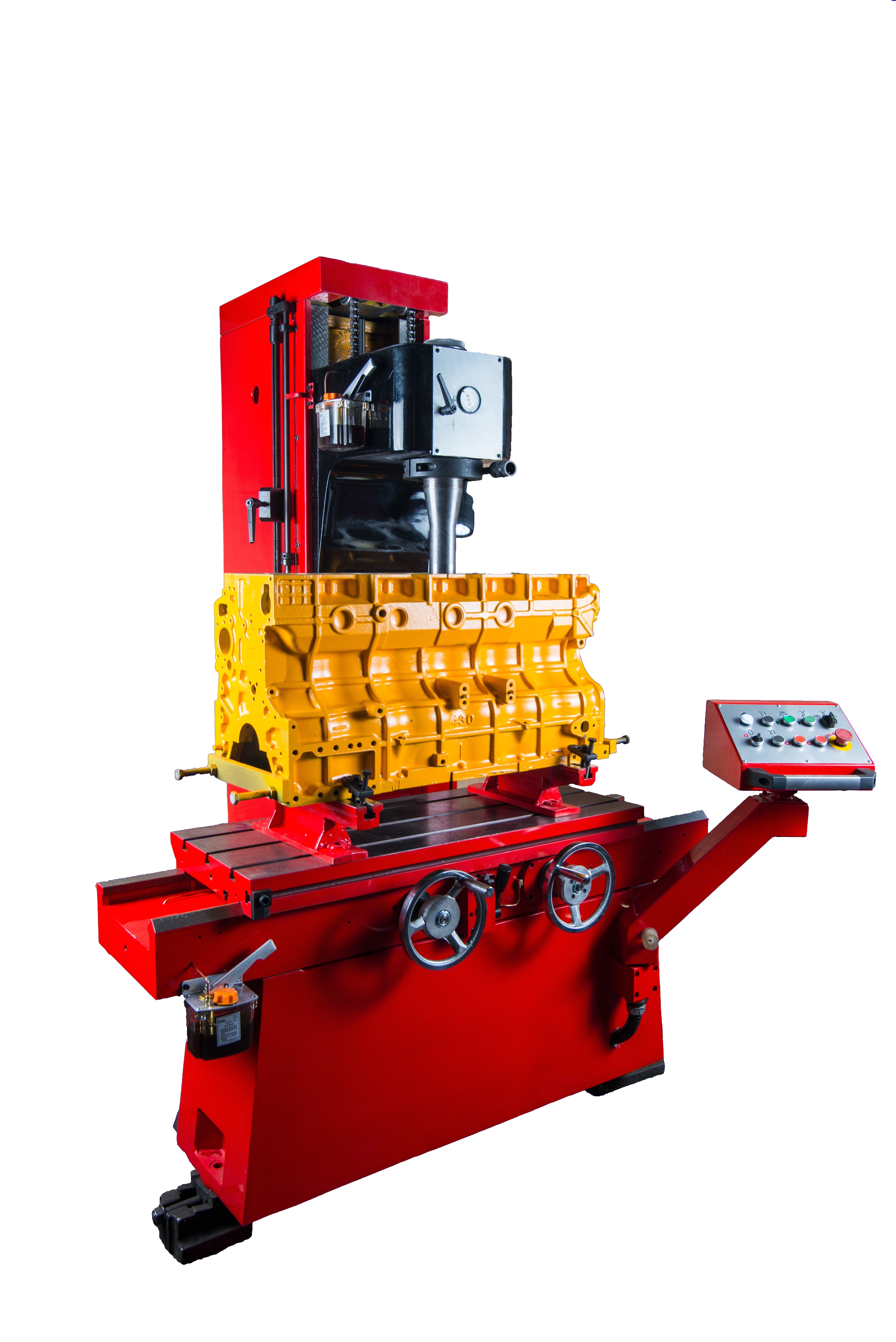

CYLINDER BORING-MILLING MACHINE BM150
This machine BM150 is mainly used for repair small-middle sized engine blocks and head;easy to operation;6 shift speed change from gear transmission box; avoid the torque lose:

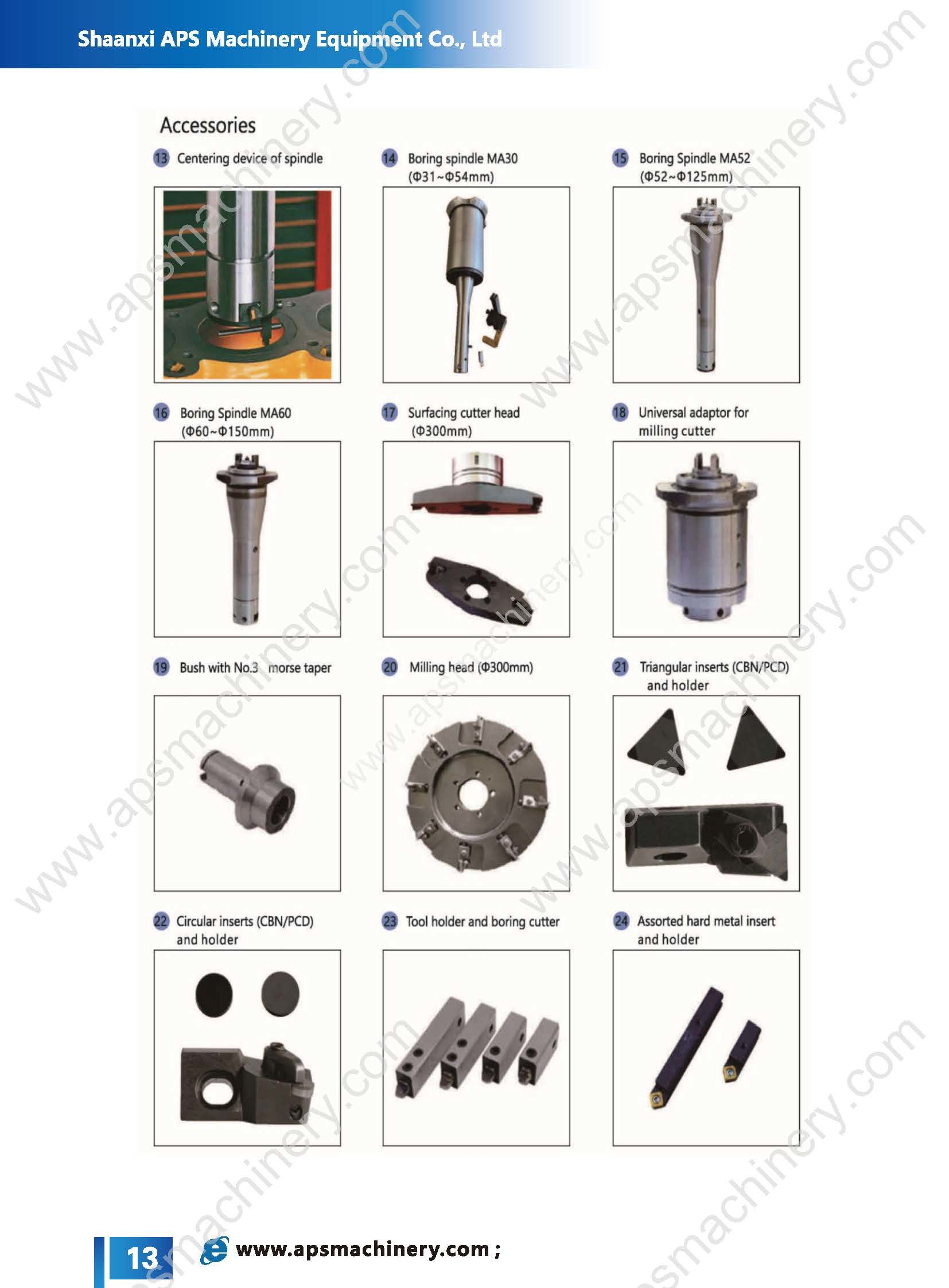

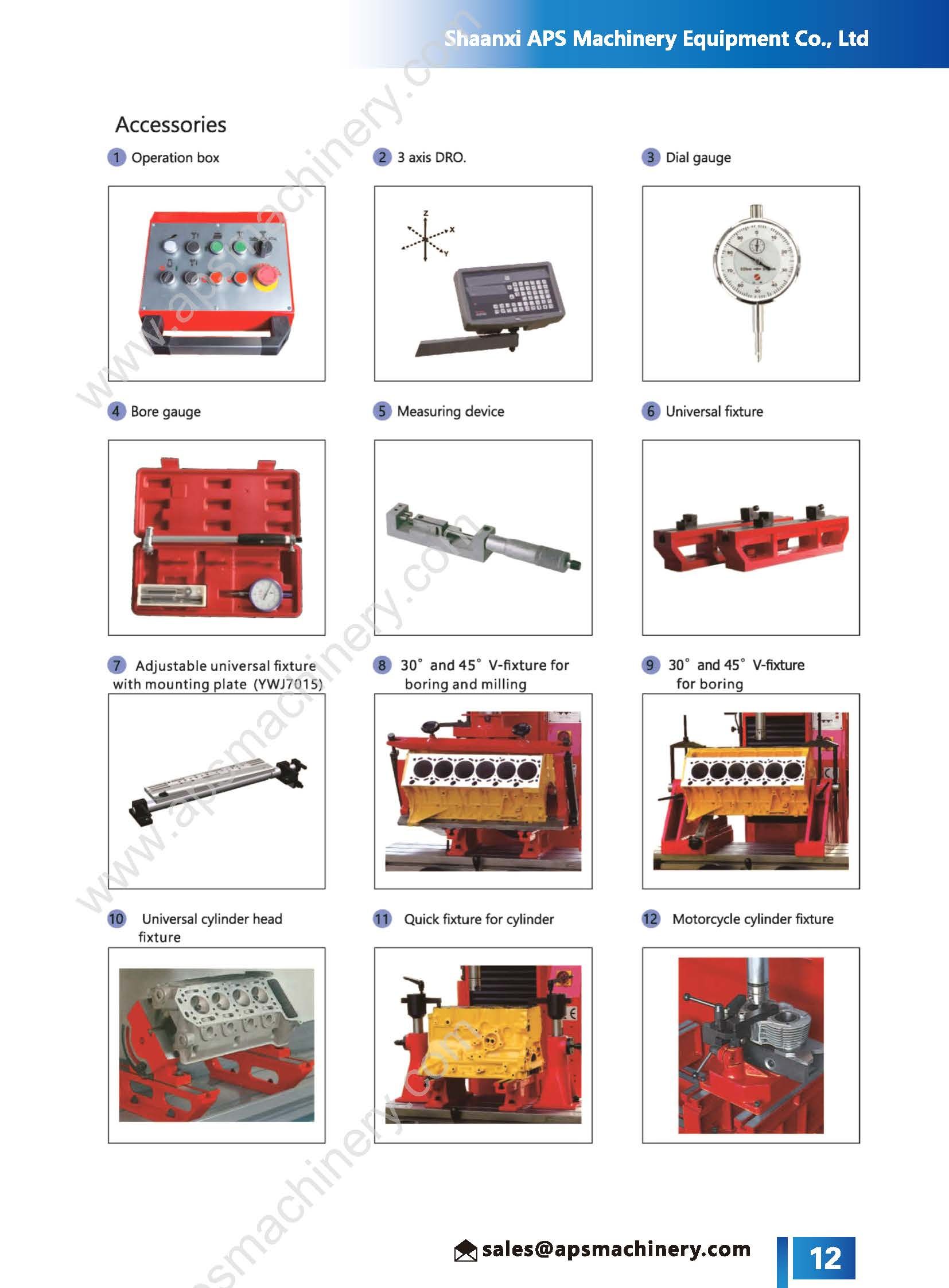

Cutter pouch spindle and the spindle holder, provide high accurate and efficiency.;Centralized lubricate system ensure the long life for the machine use and easy for maintenance,;multi-choice of accessories, boring, milling, are all available. As well as motor.cycle blocks.
Model | BM150 | B150 |
Boring capacity | Ф31-φ155 mm | |
Max.boring depth | 350 mm | |
Max.milling width | 300 mm | Without milling |
Max.milling area | 300x800mm | Without milling |
Max.spindle head travel | 530 mm | |
Distance from spindle C/L to column ways | 335 mm | |
Useful table surface | 400x1000 mm | |
Longitudinal traverse of table | 830 mm | |
Cross traverse of table | 60mm | |
Spindle rotation speeds | 105,210,280,390,550,780 mpm | |
Spindle head work feed speed, per revolution | 0.06,0.12.0.18 mm | |
Spindle fast feed | 1200 mm/min | |
Table work feed speed, per minute | 52~104 mm/min | |
Spindle motor | 1.5 kw / 1.2 kw | |
Fast spindle motor | 0.09 kw | |
Table traverse | 0.19kw | |
Tool grinder | 0.2 kw | |
Precision of boring dimension | H7 | |
Roughness of boring surface | Ra2.5 | |
Roughness of milling surface | Ra3.2 | |
Overall dimension: | 2570x 1175x1920mm | |
Packing dimension: | 1580x 1430 x2200mm | |
N.W/G.W | 1600/1800 kg | |
-
File size: 1.6MB
-
File size: 13.7KB
