Main specifications
+
T806 807 808
CYLINDER BORING MACHINE FOR MOTORCYCLET806/T806A/T807/T807K/T808A
E-mail: sales@apsmachinery.com
Consult Now
Introduction

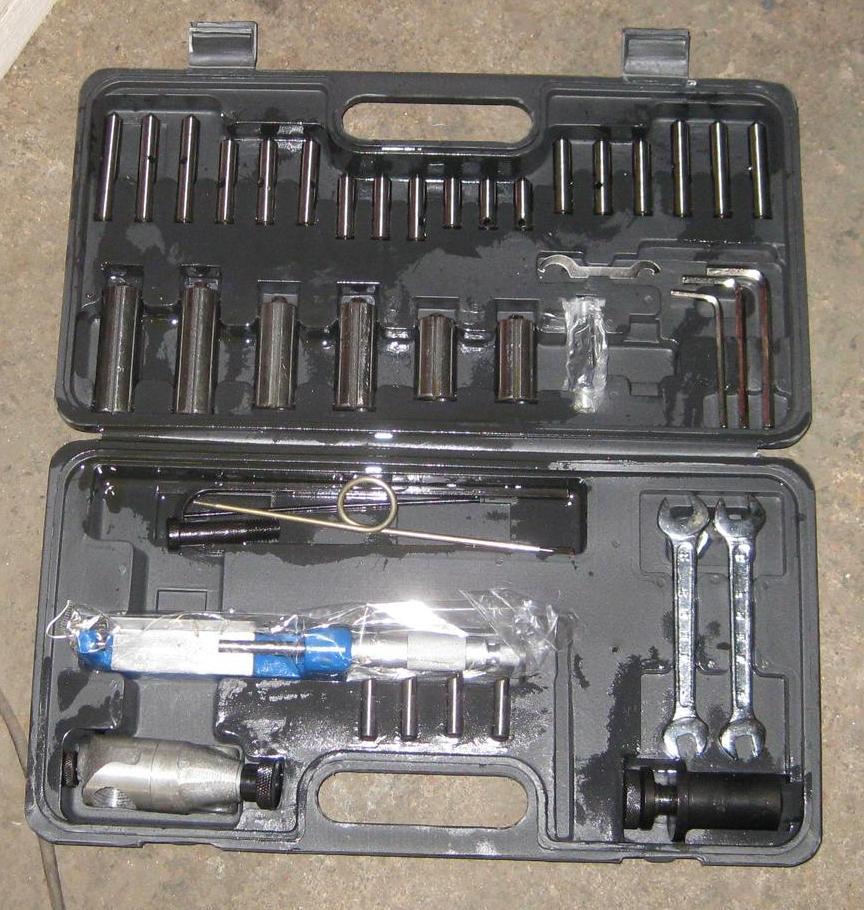

Accessory
Download
Viedo

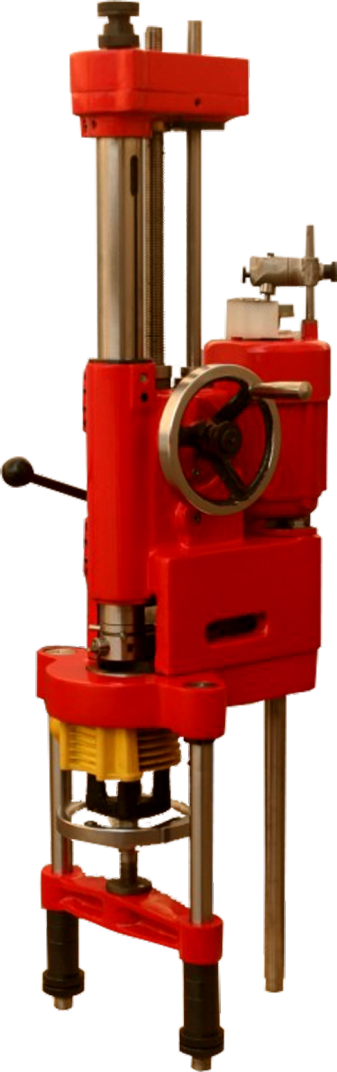

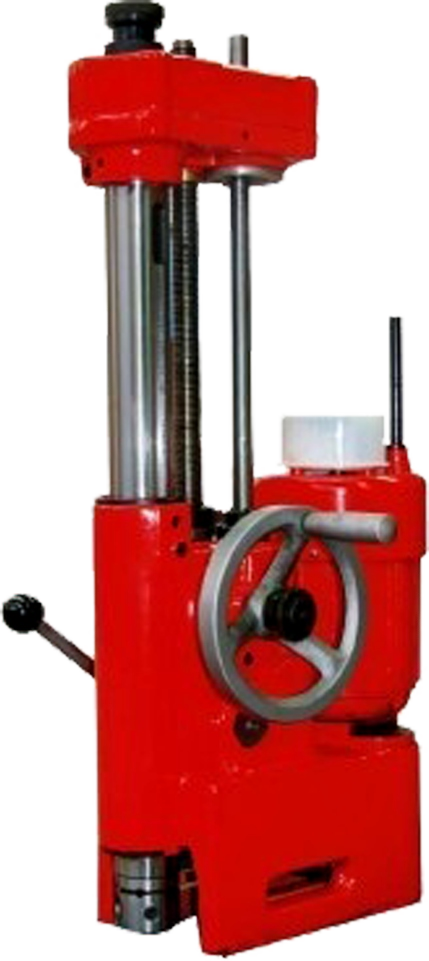

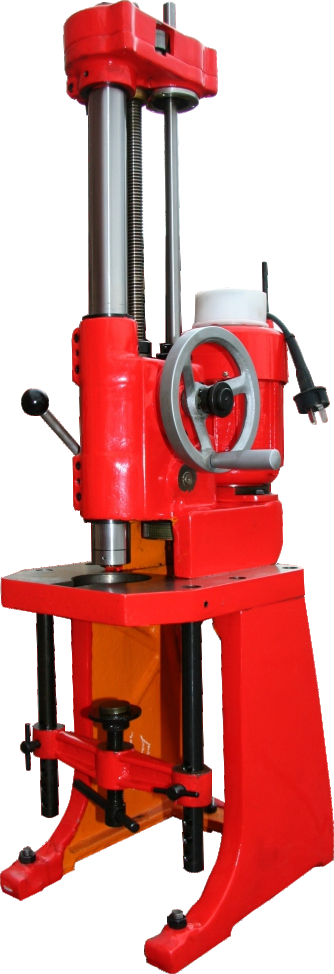

CYLINDER BORING MACHINE FOR MOTORCYCLET806/T806A/T807/T807K/T808A
The boring machine is mainly used for reboring engine cylinders of motorcycles,automobiles and middle&small-tractors.
Reliable performance ,widely use, processing accuracy high productivity.Easy and Flexible operation
Good rigidity ,amount of cutting.
Model | T806 | T806A | T807 | T807K | T808A |
Boring diameter | 39-60mm | 45-80mm | 39-70mm | 39-80 mm | 50-85 mm |
Max. boring depth | 160 mm | 170mm | 160 mm | 170 mm | 170 mm |
Spindle speed | 486 r/min | 394 r/min | |||
Spindle feed | 0.09 mm/r | 0.10 mm/r | |||
Spindle quick reset | Manual | Manual | |||
Motor voltage | 220/380V | 220/380 V | |||
Motor power | 0.25 Kw | 0.25 Kw | |||
Motor speed | 1440 r/min | 1440 r/min | |||
Overall dimension | 330x400x1080mm | 350x272x725 mm | |||
Machine weight | 80kg | 85kg | 81kg | 85kg | 48 kg |
-
