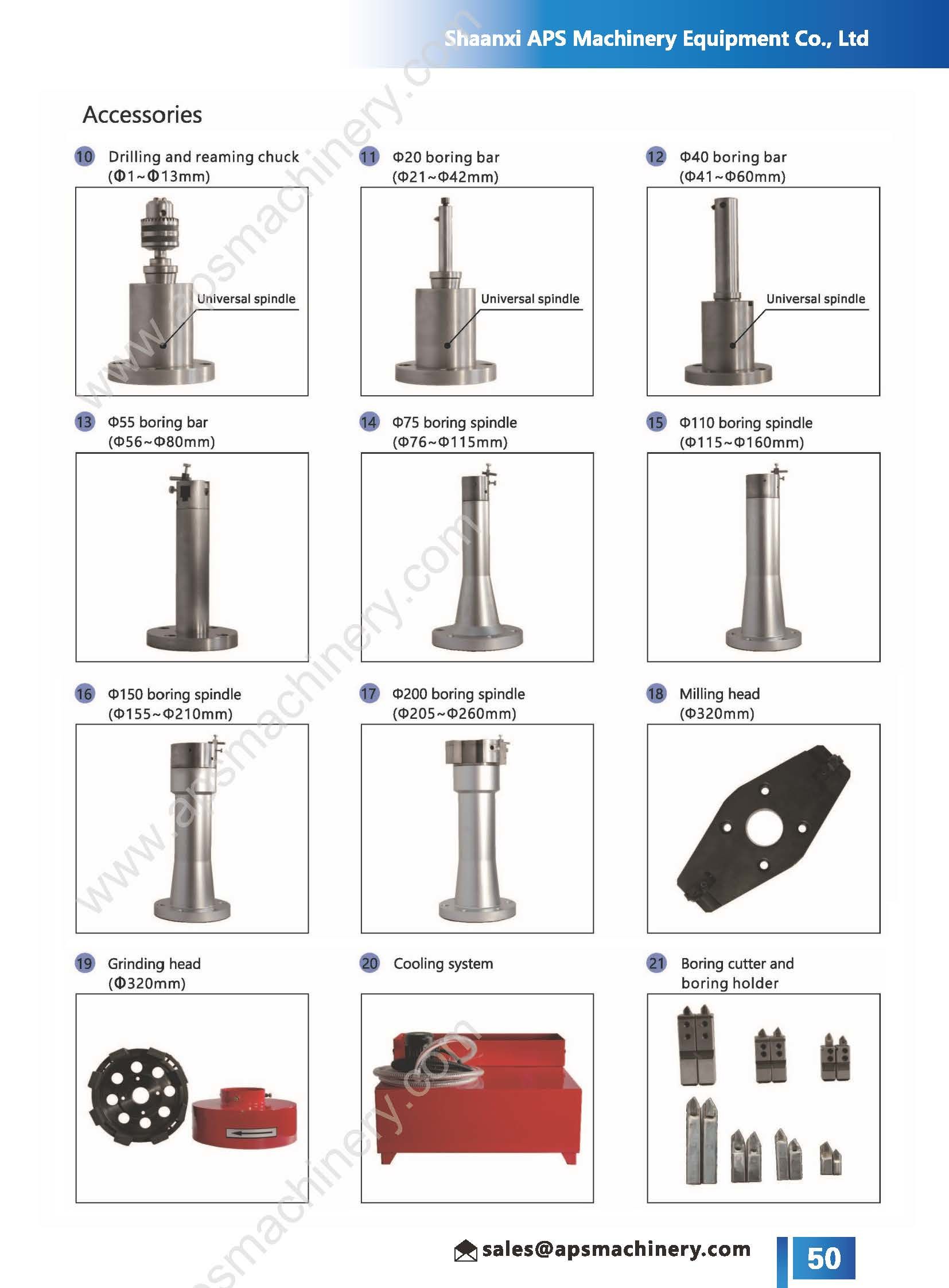

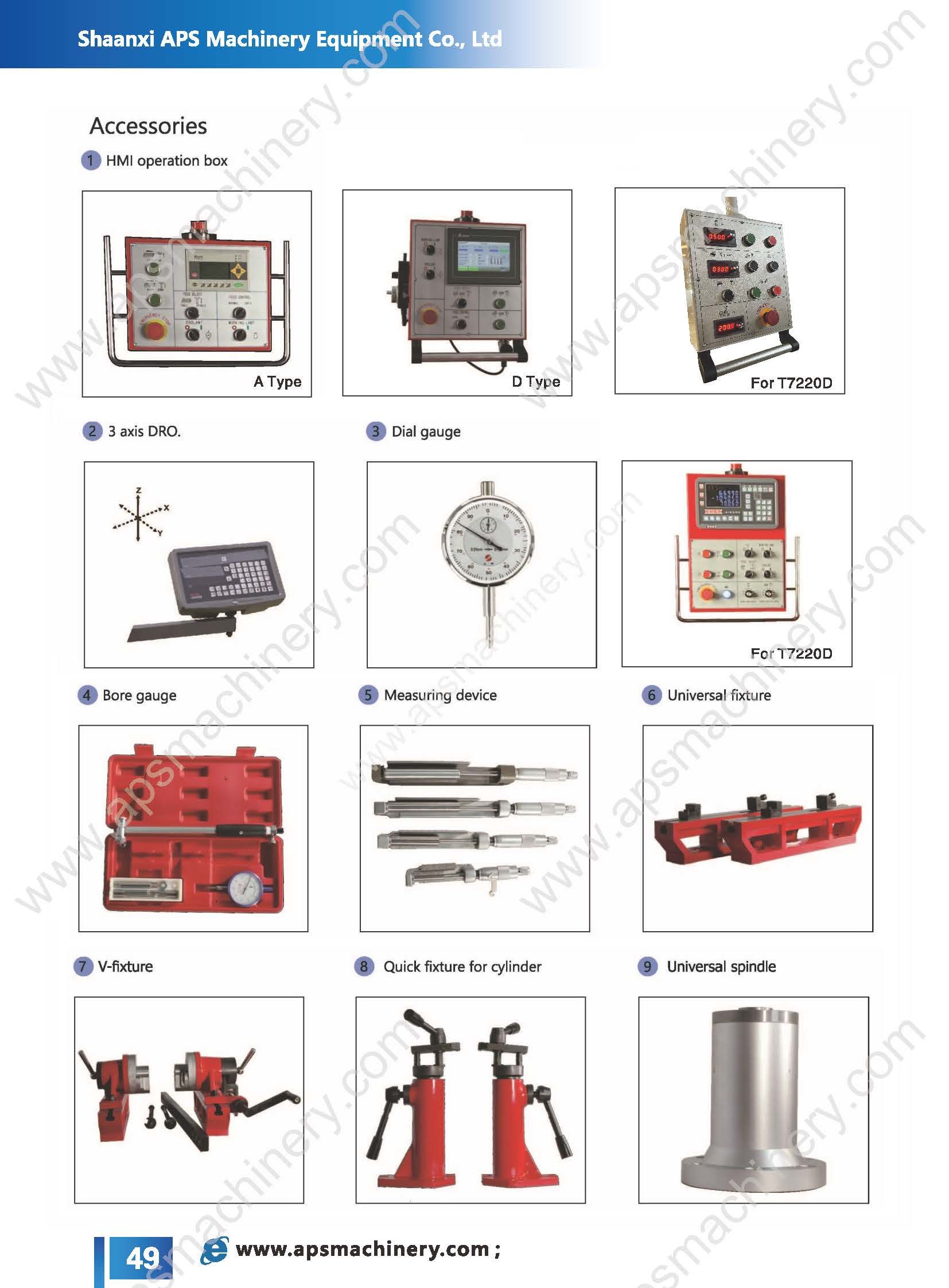

Accessory
Download
Viedo

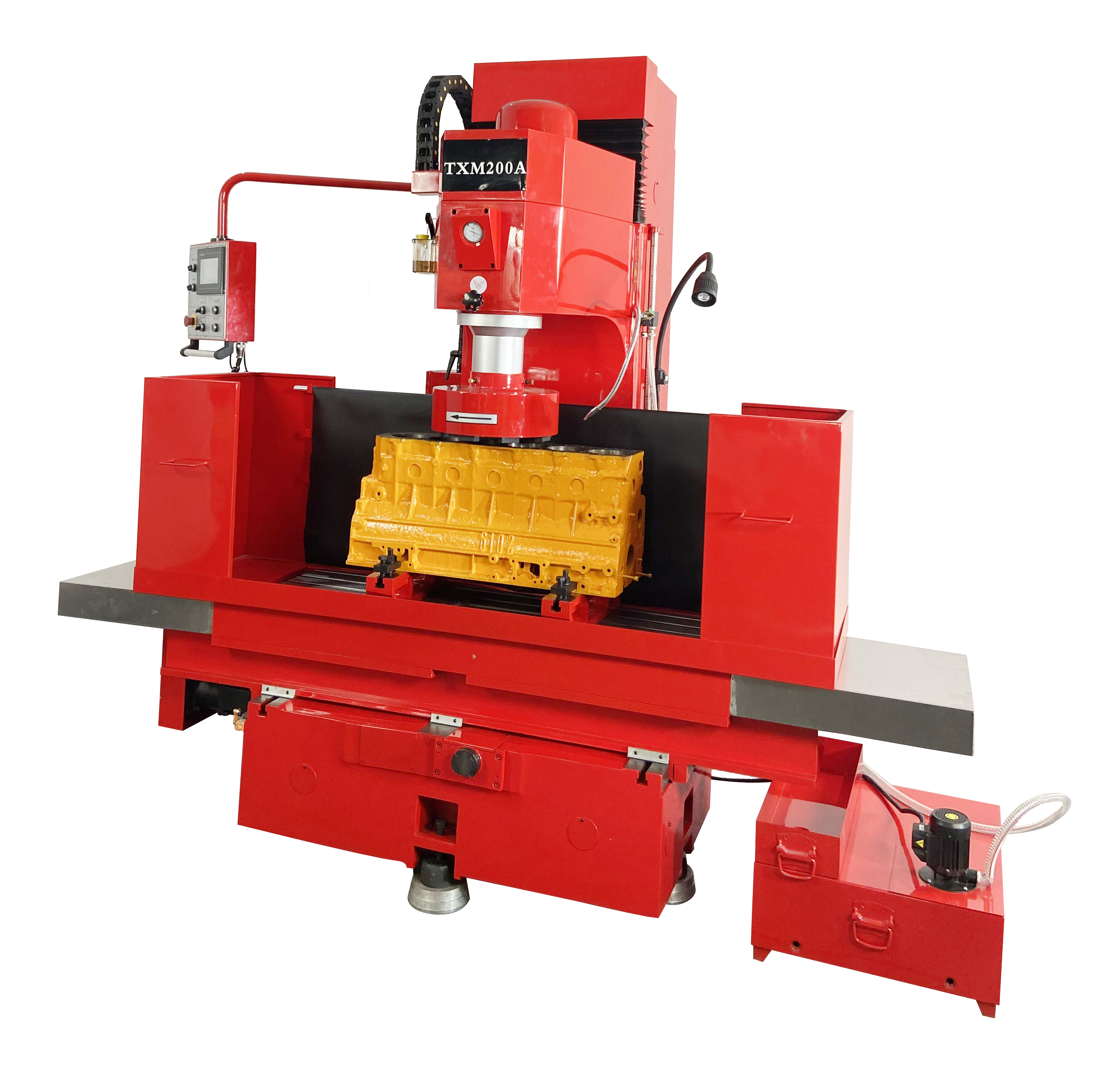

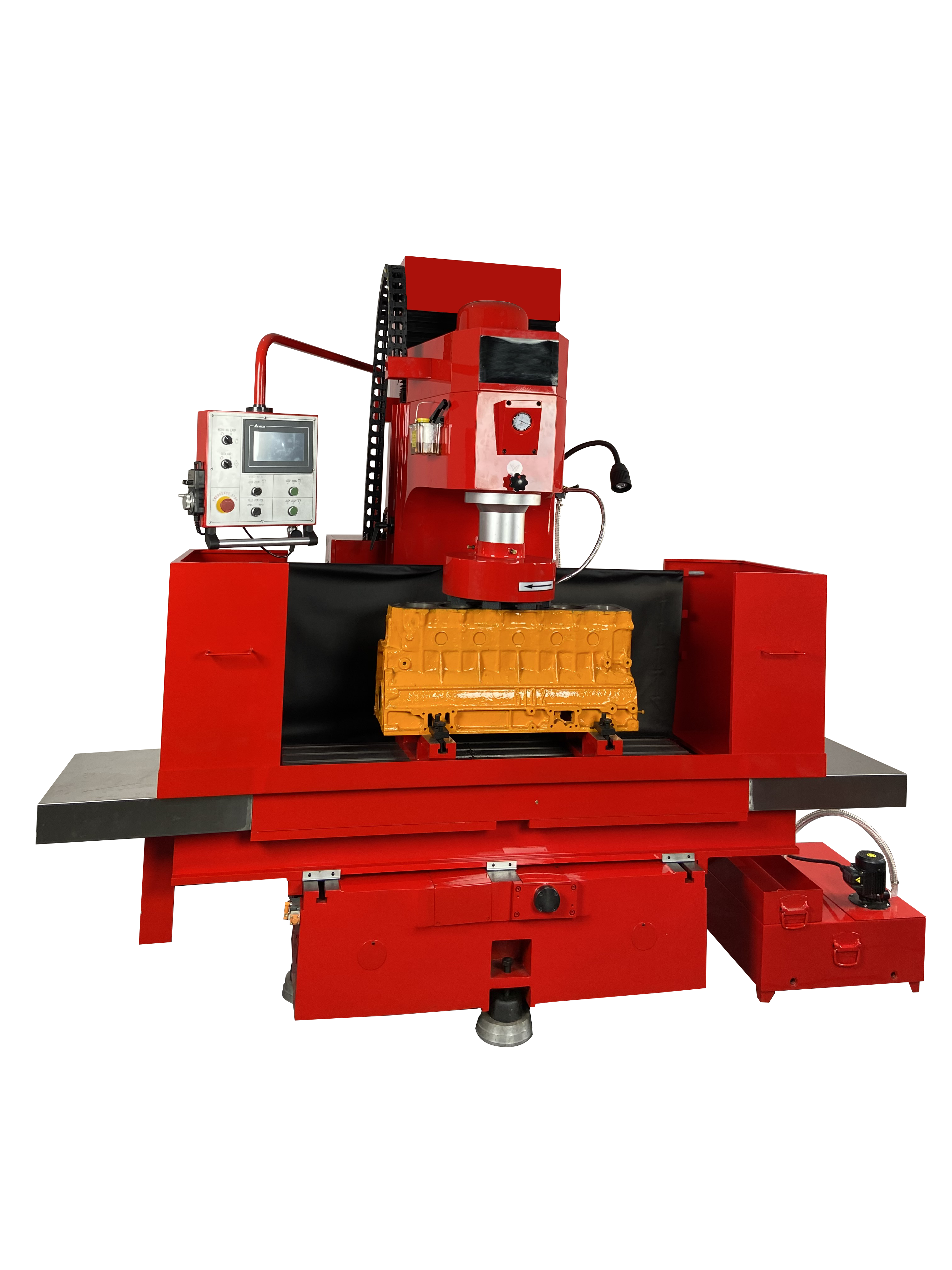

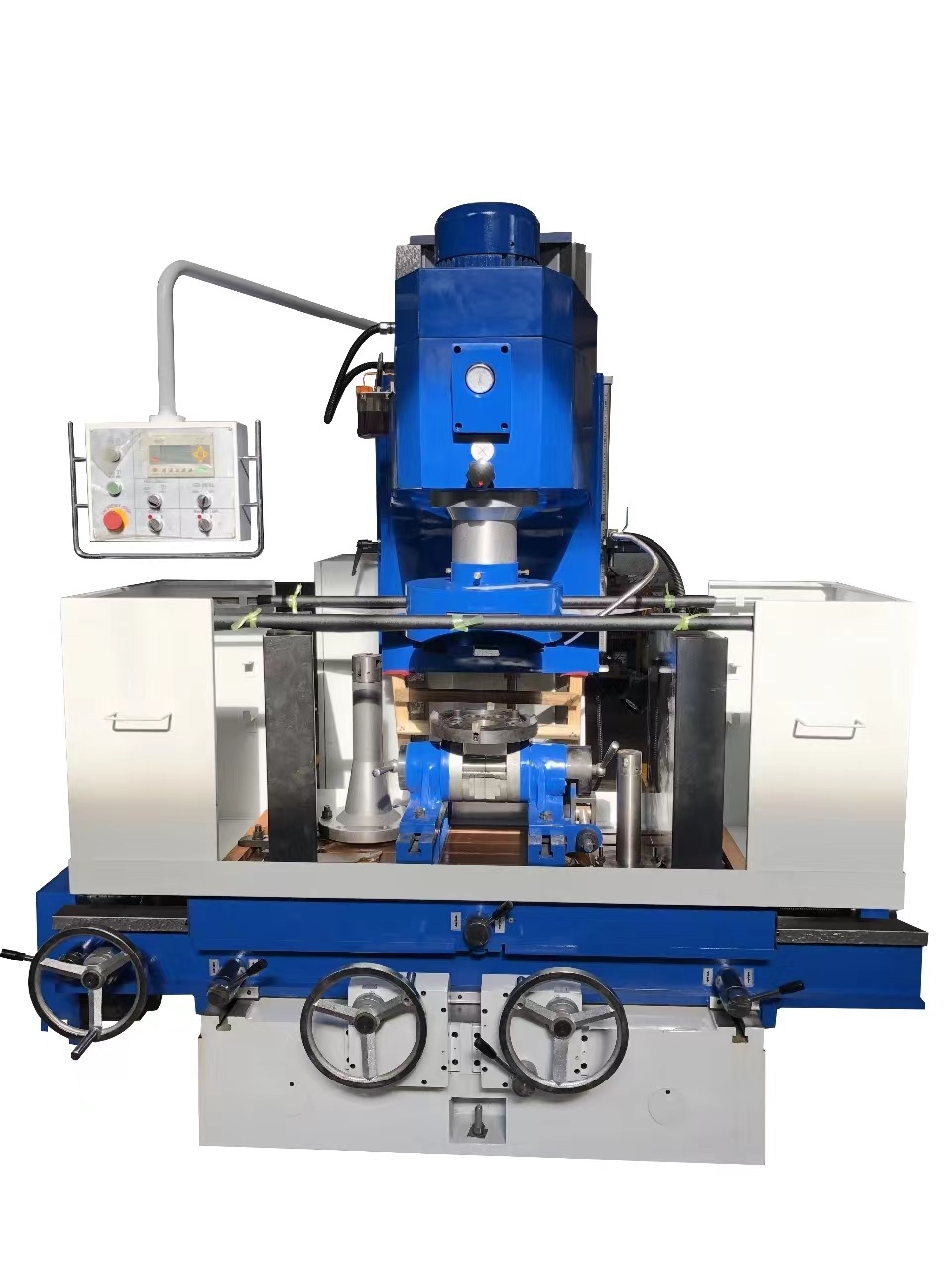

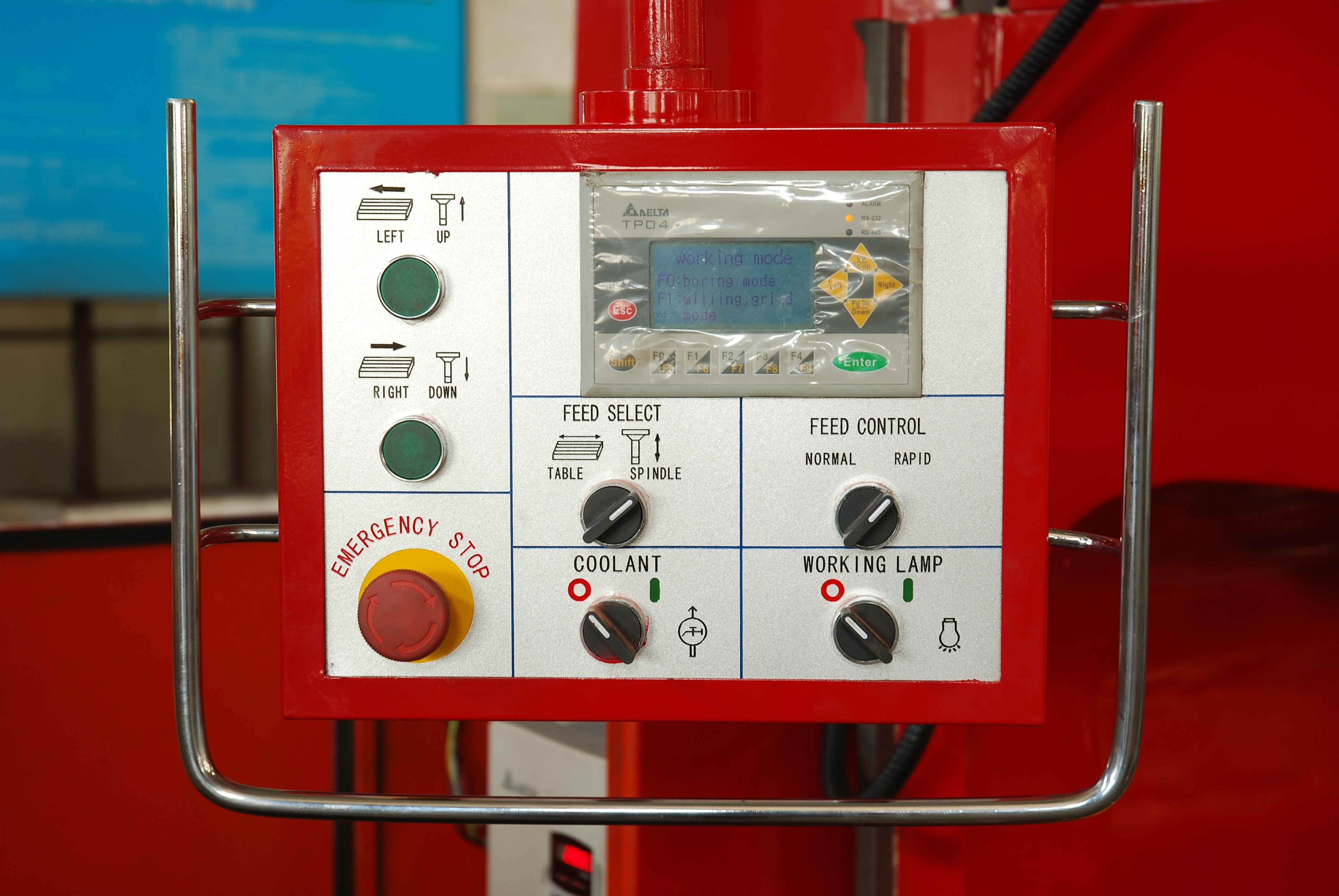

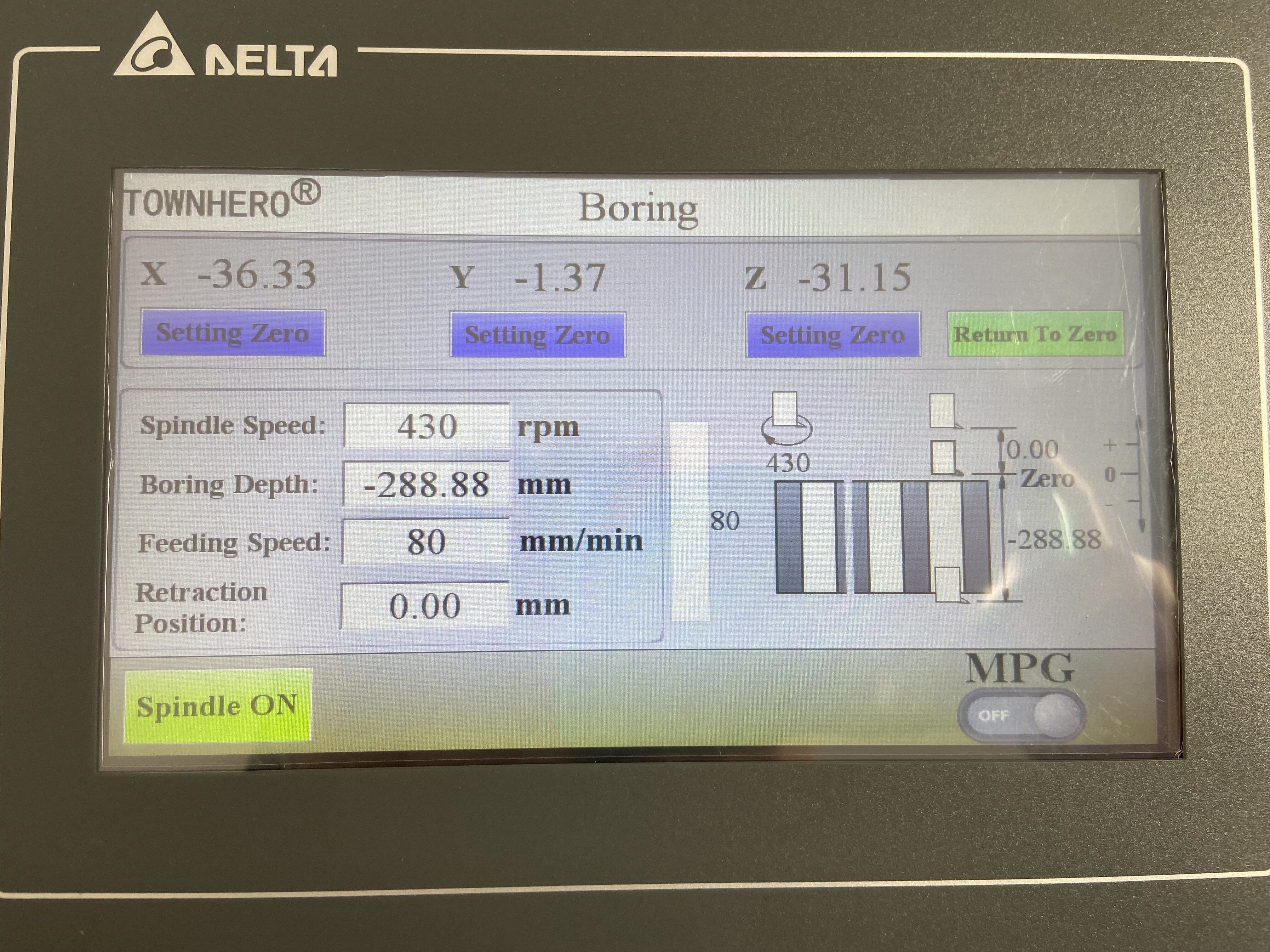

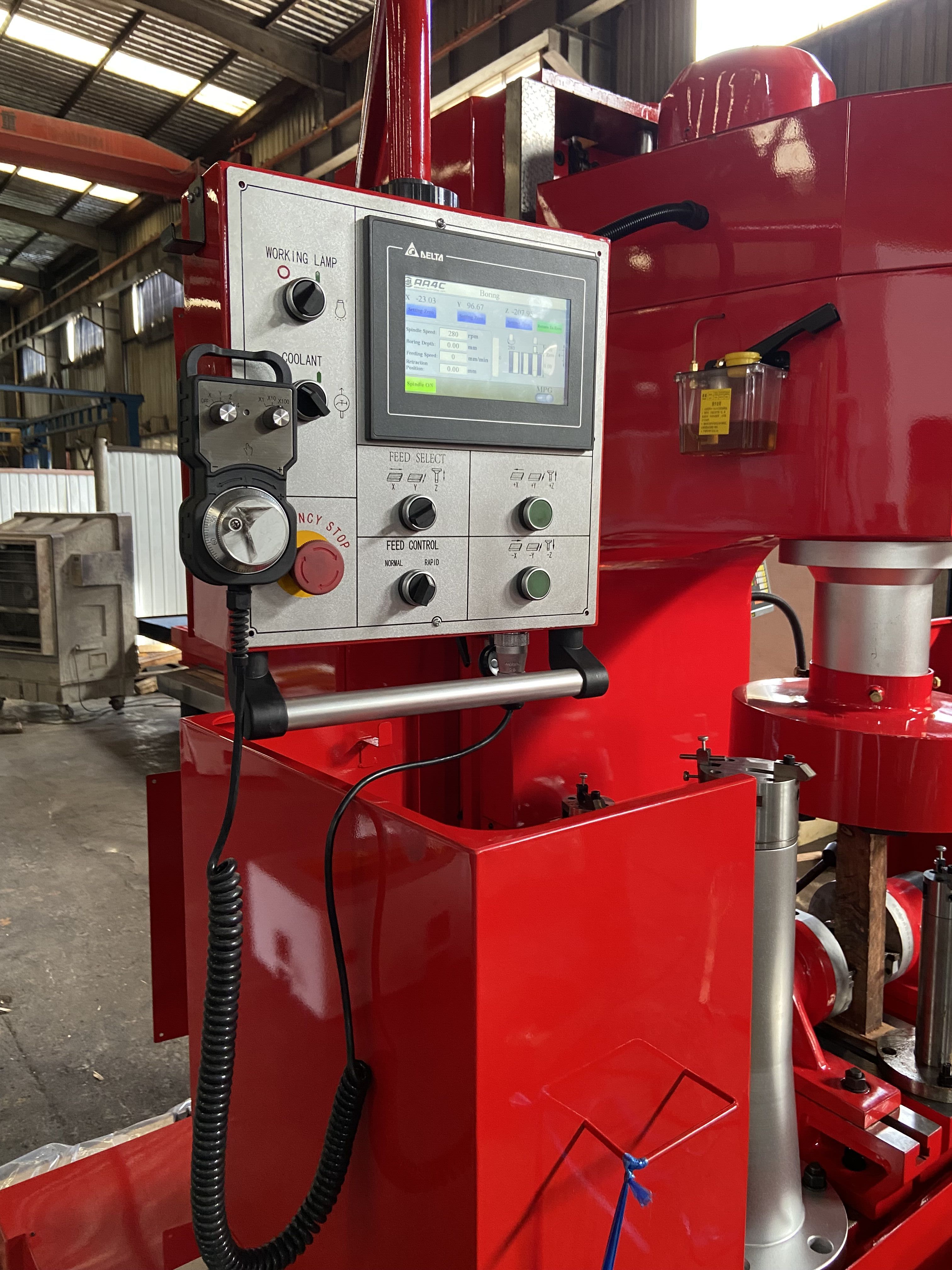

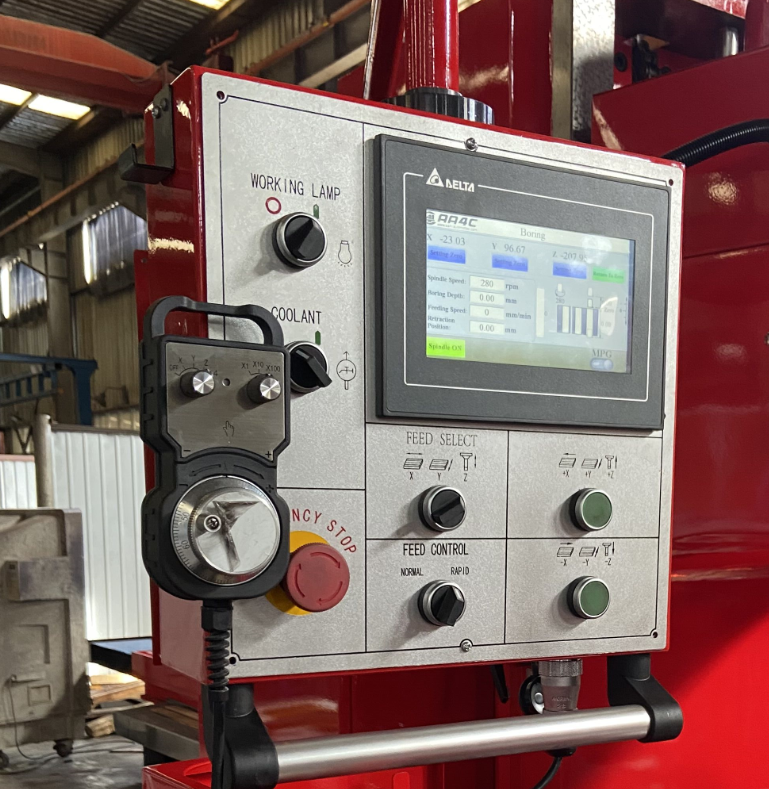

Vertical Fine Boring &Grinding-Milling Machine TXM170/200/250A/D
This serial model can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel engines and compressors,as well as various high precision holes boring, surface milling grinding of other workpieces.
TXM: boring hole,grinding and milling surface.
ITEMS | | TXM170A/D | TXM200A/D | TXM250A/D | |
Max. boring diameter | Mm | φ170 | φ200 | φ250 | |
Max. boring depth | Mm | 400 | 500 | 500 | |
Max.grinding area | Mm | 400x1000 | |||
Max.milling area | Mm | 400x1000 | |||
Max. drilling& reaming diameter | Mm | φ30 | |||
Spindle speed | r/min | 120-1200 | |||
Feeding of the spindle | Mm/min | 14-900 | |||
Rapid moving speed of the spindle | Mm/mim | 900 | |||
Spindle travel | Mm | 700 | |||
Distance between spindle end face and table | Mm | 0-700 | |||
Distance between spindle axis and carriage vertical plane | Mm | 375 | |||
Longitudinal feed of worktable | Mm/mim | 32-1350 | |||
Rapid moving speed of the table longitudinal travel | Mm/mim | 1350 | |||
Max. longitudinal travel of the working table | Mm | 1500 | |||
Max. cross travel of the working table | Mm | 200 | |||
Worktable size(W*L) | Mm | 500*1250 | 500*1500 | 500*1500 | |
Dimensional precision of boring hole | | H7 | |||
Machining precision | Roundness | Mm | 0.005 | ||
Cylindricity | 0.01/300 | ||||
Milling flatness | 0.10 | ||||
Grinding flatness | 0.08 | ||||
Surface roughness | Boring | Um | Ra2.5 | ||
Milling | Ra3.2 | ||||
Grinding | Ra0.8 | ||||
Main motor power | Kw | 5.5 | |||
Overall dimensions (L*W*H) | Cm | 260*163*230 | |||
Packing dimensions(L*W*H) | Cm | 225*190*228 | |||
N.W./G.W | kg | 3300/3600／ | 3500／3800 | 3500／3800 | |
REMARK | Accessories refer to accessories list of boring machine | ||||
-
