C9335/C9335A/C45/C50
Applicable for repairing small brake drum/dis of cars and mini-automobiles.
E-mail: sales@apsmachinery.com
Consult Now

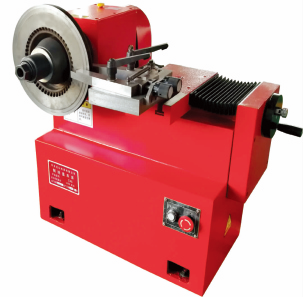

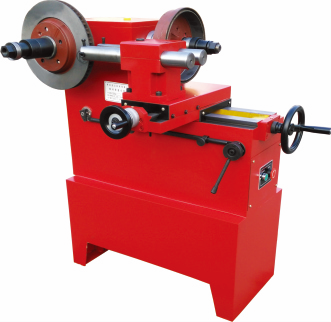

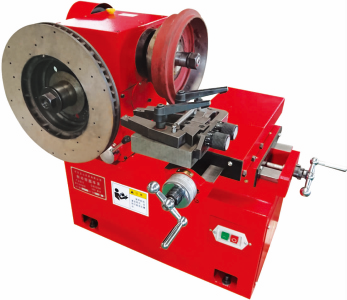

Brake drum/disc cutting machine
Brake drum/disc cutting machine which is used for boring , cutting and repairing the brake drum, brake plate of cars and mini-cars. This machine is strong in rigidity, quick in cutting and high in processing rate. Usually , it needs boring or cutting only once to reach the required precision. With advantages of easy operating , convenient repairing, safety and reliability , the machine is a perfect repairing equipment.
C9335
- Applicable for repairing small brake drum/dis of cars and mini-automobiles.
- Feeding can be either manual or auto.
- Two faces of brake disc can be turned simultaneously
C9335A
C9335A is updated version of C9335 ,better rigidity
C45
- C45 is suitable for processing the brake discs of vehicles
like SUV cars.
- Spindle speed 220rpm enables shorter machining time &
better efficiency.
- 2 faces of brake disc can be turned simultanously.more
convenient optimized tool post.
C50
- Applicable for repairing brake discs of medium & small vehicles.
- Available feeding in either direction. enables high efficiency.
- Feeding from outside to inside is with high speed for rough turning, frominside to outside is with low speed for fine turning.
- Adjustable turning depth limit with auto stop function.
- Fit for more models, especially for repairing brake discs of the luxurious medium vehicles & off-road vehicles like BMW, BENZ, AUDl, etc.
- 2 faces of brake disc can be turned simultaneously.
Model | C9335 | C9335A | C45 | C50 |
Drum diameter | 180-350mm | 180-350mm |
| 180-320mm |
Disc diameter | 180-350mm | 180-350mm | 180-450mm | 180-500mm |
Rotating speed of workpiece | 75/130r/min | 75/130r/min | 220r/ min | 30/54/80r/min |
Max travel of tool | 100mm | 100/85mm | 85 mm | 225mm |
Feeding capacity | 0.15 | 0.16 | 0.11 | 0.16/0.30 |
Motor Power | 1.1 kw | 1.1 kw | 1.1kw | 0.75kw |
Packing Size | 695X565X635mm | 695X565X635mm | 840X680x840mm | 980X870X1020mm |
Net/Gross weight | 200/260kg | 200/260kg | 220/240kg | 320/350kg |
-
