Main specifications
+
TRV516-VALVE-GRINDING-MACHINE
A perfect concentricity between the head and the stem is due to a centerless grinding system.
E-mail: sales@apsmachinery.com
Consult Now
Introduction
Accessory
Download
Viedo

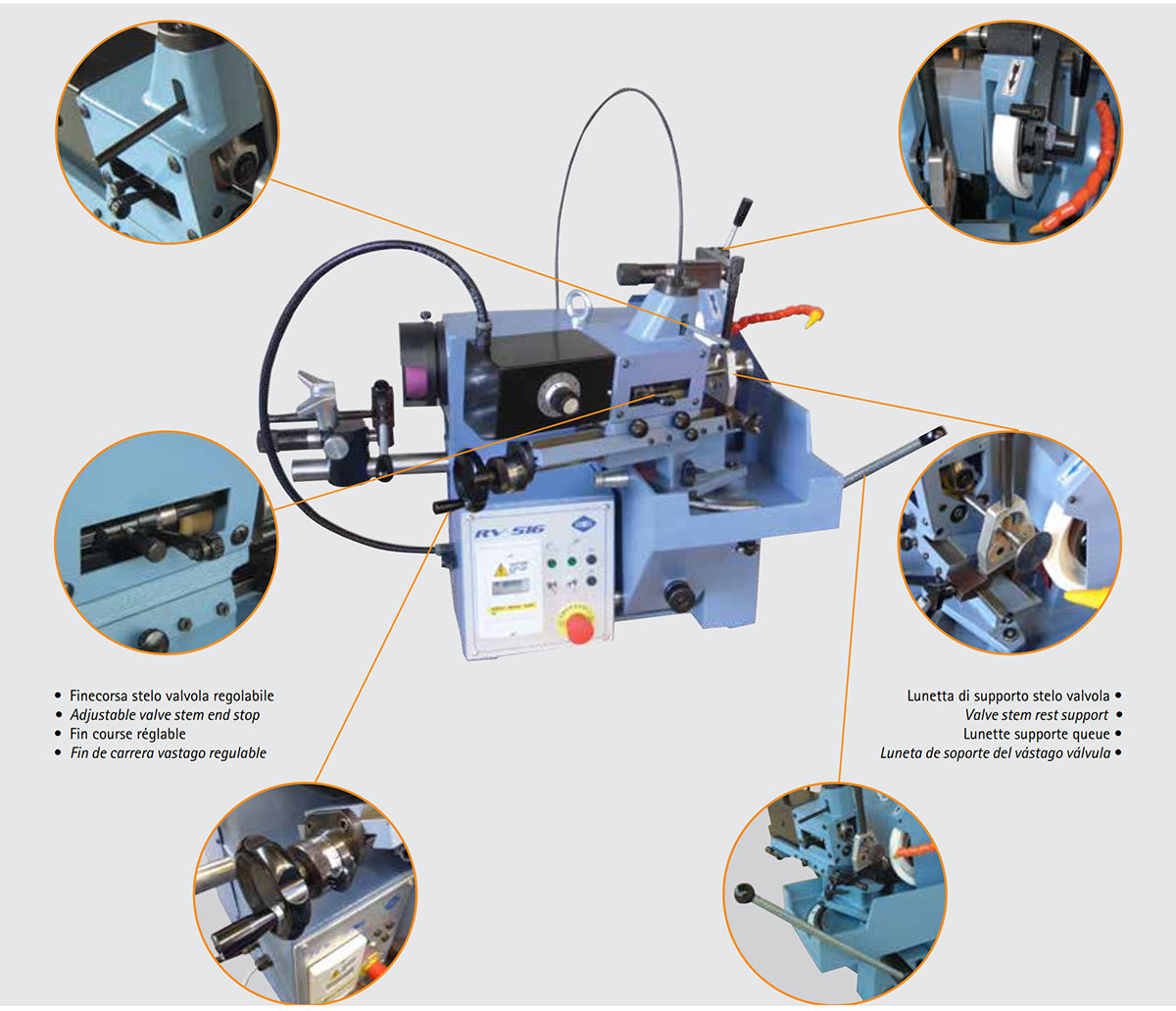

A perfect concentricity between the head and the stem is due to a centerless grinding system. This makes the valve rotate on its stem with an accuracy within 0.0 1 mm. Valve stem diameters from 4 up to16 mm can be operated without the need for replacing any collet or spindle.Three motorized rollers drive the valve drive system. The roller on the top is tilted to automatically drive the valve on an adjustable control switch. This guarantees to accurately control each valve's length and to avoid to manually feed the valve towards the grinding wheel.
Model | TRV 516 |
Valve stem diameter | 4-16mm |
Valve stem length | 55-330 mm |
Valve head diameter | 114 mm |
Face angles | 0°-60° |
Grinding wheel speed | 2800 rpm |
Main abrasive grinding wheel diameter | 215 mm |
Butt abrasive grinding wheel diameter | 100 mm |
Dimensions(LxWxH) | 700x600x700mm |
Weight | 150 Kg |
-
