Standard accessory
HONING MACHINE FOR MOTORCYCLE CYLINDERS SHM100
This machine is used for honing engine cylinders of automobiles motorcycles
E-mail: sales@apsmachinery.com
Consult Now
Introduction
Accessory
Download
Viedo
* This machine is used for honing engine cylinders of automobiles motorcycles ,cars & tractors,also for making other machine tools
* This machine with compact frame, small volume*Main spindle by manual to moving up and down ,adjust easily
Convininent operation，high efficicency
* Good rigidity, amount of cutting

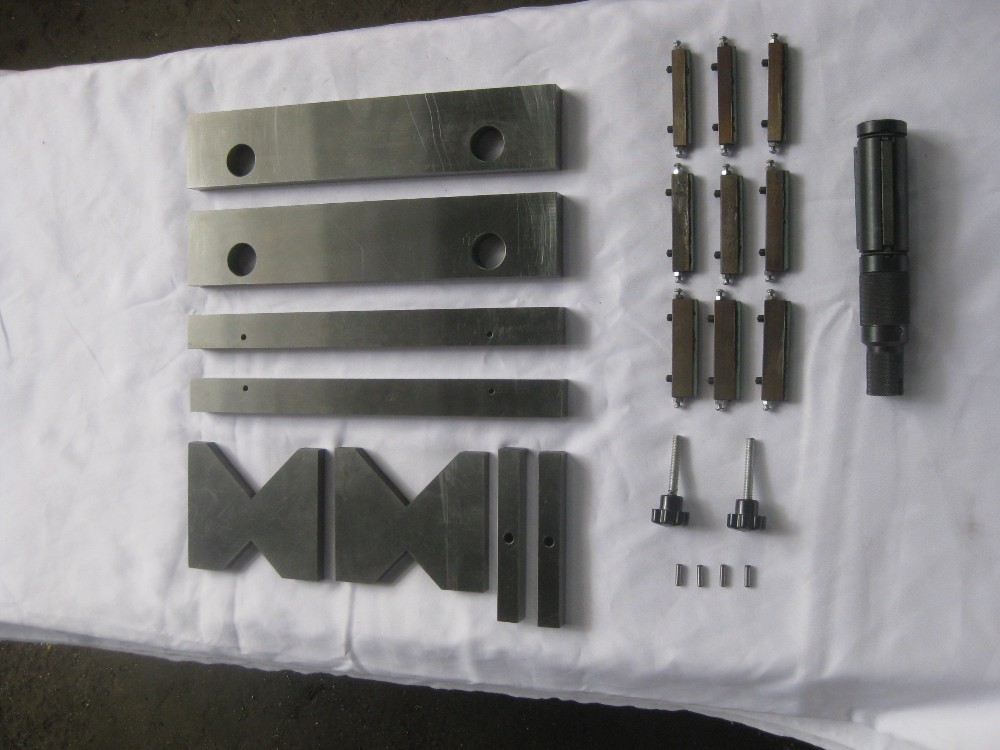

Honing head MFQ40(φ40-φ62),Square backing plate,Square spindle,V-shaped bucking plate,Pentagram handle, Hex.Socket wrench.Spring of thread sleeve.
Main specifications
Model | SHM100 |
Max.Honing Diameter | 100mm |
Min.Honing Diameter | 36mm |
Max.Spindle stroke | 185mm |
Distance between upright and spindle axis | 130mm |
Min.distance between fastening brackets and bench | 170mm |
Max.distance between fastening brackets and bench | 220mm |
Spindle speed | 90/190rpm |
Main Motor power | 0.3/0.15kw |
Coolant system motor power | 0.09kw |
-
