Main specifications
+
QY-6
It uses compressed air as its power source and makes the riveting by hydraulic pressure, it is safe to operate.
E-mail: sales@apsmachinery.com
Consult Now
Introduction
Accessory
Download
Viedo

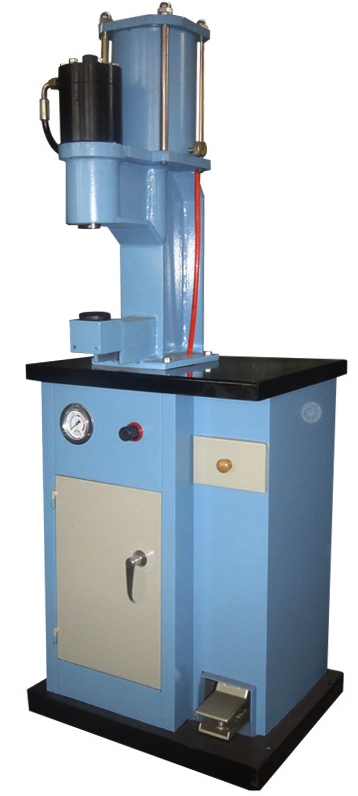

Pneumatic-hydraulic Brake Shoe Riveting Machine
It uses compressed air as its power source and makes the riveting by hydraulic pressure, it is safe to operate.
It features novel structure, easy operation, stable center alignment and djustable riveting force etc.
It is suitable for heavy duty truck brake lingings,etc ;
Pressure can be adjusted according to size and material
of the rivets;Pedal room is big With cabinet for accessories;
Model no | QY-6 |
Material | Metal plate |
Painting | High quality paint |
Color | Blue&black |
Max rivet force | 60KN(6T) |
Working air pressure | 0.5-0.9Mpa(Adjsutable) |
Suitable rivet diameter | 3-10mm |
Stroke of the riveter | 40mm |
Bracket adjustable height | 20mm |
Accessories: | |
Riveters: 6pcs, used for working on Φ3, Φ4,Φ5,Φ6,Φ8,Φ10 rivets Puncher: 2pcs, used to remove old rivets 3mm-10mm | |
Classification:
Engine Rebuilding
