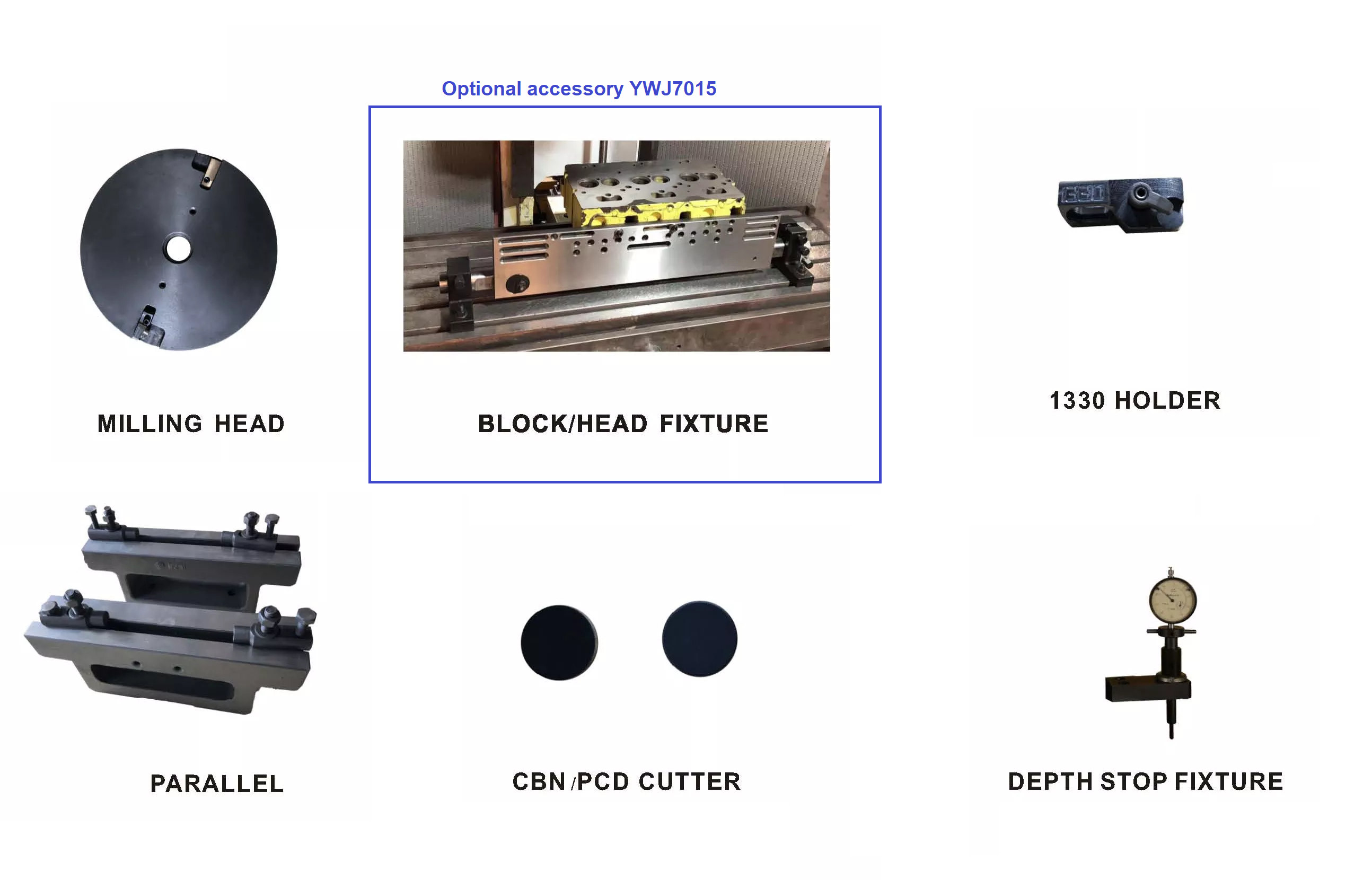

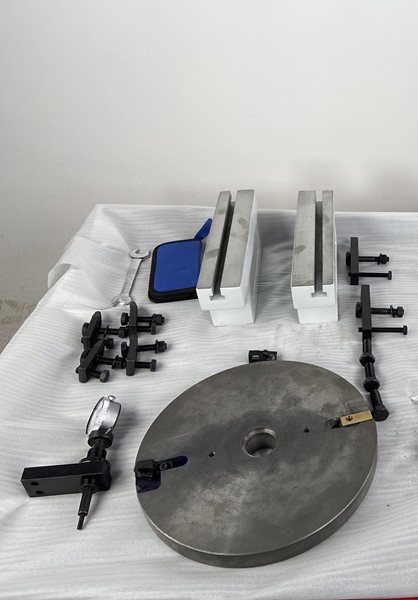

Accessory
Download
Viedo

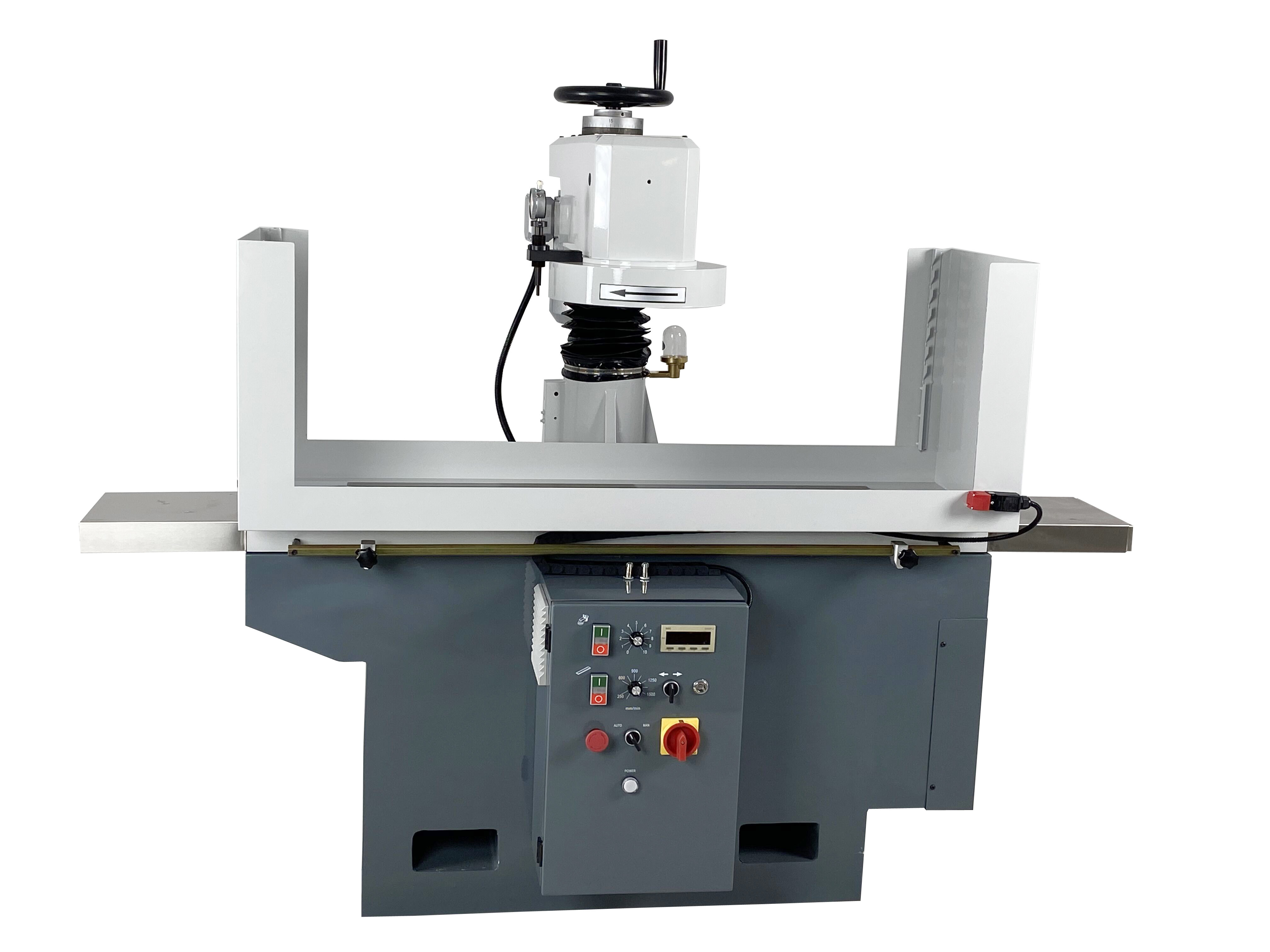

Cylinder head and block resurfacing machine-TSM850
The TSM850 has been designed as a brake lathe for the reconditioning of plane surfaces
Maximum 850mm length and 430mm height of workpiece, TSM850 can do job of inline 6 block and head.
The adjustable head and table speeds with frequency inverters, and equipped with CBN and PCD cutter, machine can reach good surfacing result.
Amazing cost make it best machine for small garages.
CYLINDER HEAD ADN BLOCK RESURFACING MACHINE TSM1200
This machine is designed for plane milling. The maximum length of the work piece is1200mm, and the height is 520 mm. Adjustable speed of the head and table with frequency converters and equipment with CBN and PCD cutters allow the machine to achieve good surface processing results. Low cost makes it an ideal choice for small productions.
Model | TSM850 | TSM1200 | |
Table dimension | 1100x300mm | 1500x360mm | |
Table travel | 1115mm | 1400mm | |
Max. workpiece lenght | 850mm | 1200mm | |
Max. workpiece width | 330mm | 445mm | |
Max. workpiece height | 440mm | 520mm | |
Min. workpiece height | 160mm | 260mm | |
Table feed | 0-600mm/min | 0-600mm/min | |
Milling wheel diameter | 330 mm (13") | 400mm | |
Cutting tool speed | 300-1200g/min(rpm) | 300-1200rpm | |
Fast up and down movement speed |
| 430mm/min | |
Voltage(+/- 15%) | 230V , 400V | 220v or 380v | |
Phases | 1ph or 3ph | 1ph or 3ph | |
Min.protection degree | IP 44 | IP 44 | |
Main motor power | 1.5kw | 2.2kw | |
Gear box motor power | 0.75kw | 1.5kw | |
Fast lifting motor power |
| 0.37kw | |
Total power | 2.25kw | 4.1kw | |
Environment conditions | temperature | 10-30°C | 10-30°C |
Humidity | 15-90 %RH | 15-90 %RH | |
Net/gross Weight | 800/1000 kg | 1350/1600kg | |
Packing Dimensions length*width*height | 1610×1390×1620mm mm | 2250x1260x1700mm | |
-
