Main specifications
+
VALVE GRINDER VR90 (3M9390)
Valve grinder is specially designed for automobile repairing factories and agricultural machinery repairing centres.
E-mail: sales@apsmachinery.com
Consult Now
Introduction

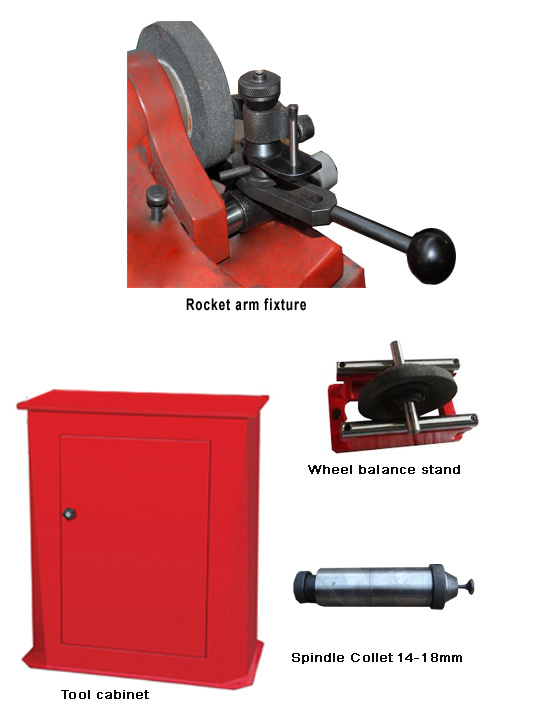

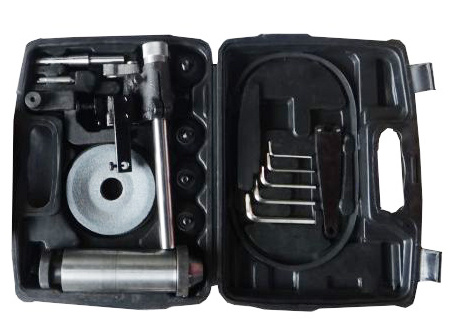

Accessory
Download
Viedo
Valve grinder is specially designed for automobile repairing factories and agricultural machinery repairing centres. It is compact and light weight, with simple construction and easy operation.It is necessary equipment for automobile repairing service.
NO. | Item | Unit | VR90(3M9390) |
1 | Max.grinding diameter | mm | 90 |
2 | Valve axle diameter | mm | 4-18 |
3 | Grinding angle | degree | 15-60 |
4 | Range of grinding valve diameter | mm | 20-90 |
5 | Longitudinal slide travel of work head | mm | 115 |
6 | Cross slide travel of whee head | mm | 95 |
7 | Max.Grinding depth | mm | 0.025 |
8 | Wheel speed ( grinding head ) | r/min | 4500 |
9 | Spindle speed( cutting head ) | r/min | 125 |
10 | Grinding Head Motor |
|
|
Motor model |
| JZ7122 | |
Power | w | 370W | |
Voltage | v | 220V | |
Frequency | Hz | 50/60HZ | |
Rotate Speed | r/min | 2800r/min | |
11 | Cutting head motor |
|
|
Power |
| JZ5622 | |
Voltage | w | 90 | |
Frequency | v | 220V | |
Rotate Speed | HZ | 50/60 | |
12 | Machine weight | kgs | 120 |
13 | Overall dimension | mm | 680x600x600 |
-
