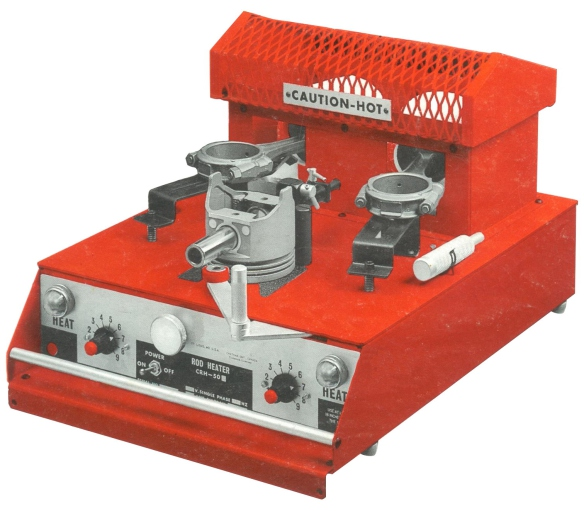

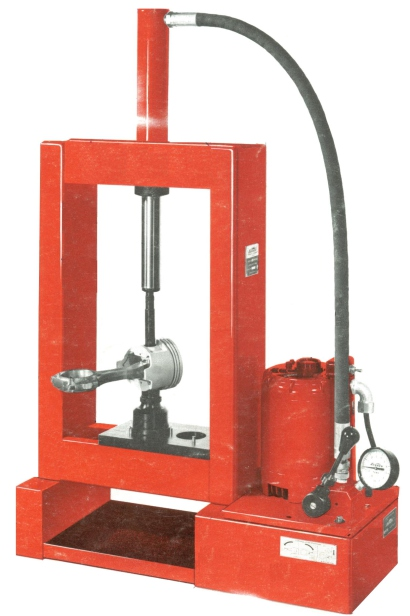

LINK PIN HOLE HEATER CRH-60 & PORTABLE PRESS TY-6
In the process of rebuilding engine , we often need to take out pin and put it back , this is the seemingly simple job , but it won't be so easy in practice , especially in the pin joining a piston to a connecting rod , the portable hydraulic press TY06 and the Rod heater CRH60 are best way for this job.
TY-06 and CRH60 often used in combination , they are wide-range of applications ,powerful functions , from single cylinder of lawnmower 's small gasoline engine to diesel engine of large construction machinery.they were competent.
Model | Unit | CRH-60 |
Max heating diameter | mm | 60 |
Max. heating depth | mm | 60 |
1PH-Voltage | v | 1-220 |
Overall dimensions | mm | 600x470x470 |
N.W.IG.W. | kg | 22/34kgs |
Main specifications
Model | Unit | TY-6 |
Sliding block stroke | mm | 0-250 |
Normal rating force | KN | 60 |
Motor power | KW | 2.2 |
Overall dimensions | mm | 87x35x110 |
Machine weight | kg | 160 |
-
