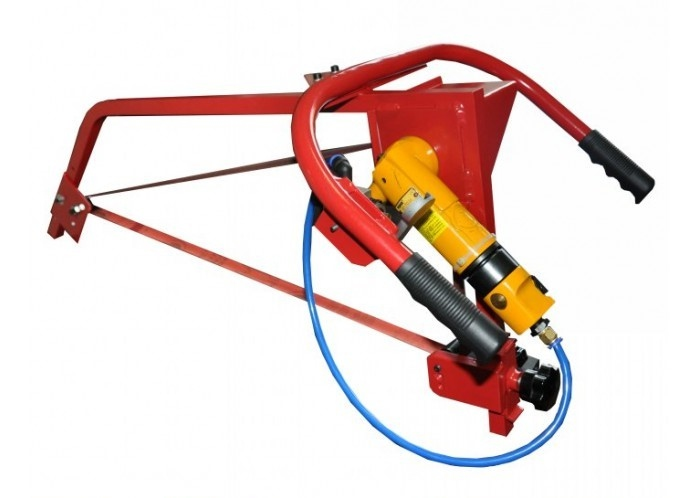

POTABLE AIR OPERATED HAND POLISHER CPA-100
This air-operated crankshaft polisher features a high-torque output air motor that is designed to handle the toughest jobs in your shop.
And because this polisher is air-operated, you won't have to worry about purchasing a replacement motor due to abrasive dust build up on the armature and brushes, a common problem with electrical units.Also cheaper to operate and safer to use than electrical units.
Standard
Belt:
1"x64".240 Gird
1"x64" .320 Gird
1"x64",400 Gird
Packing
Dimension:990x460x260mm weight:6.5kg
IIIustration # | Order Part# | Description | Qty |
1B | Hp72/brack/complete | Fixed Bracket | 1 |
2B | CF65200604 | 90-Deg. Air Fitting | 2 |
3B | APM45/Kit | Air Motor Replacement | 1 |
4B | V8107/Kit | Air Valve Kit | 1 |
5B | AP19a/frame/only | Top Frame Only | 1 |
6B | AP19b/frame/only | Bottom Frame Only | 1 |
7B | AP72B/Kit Or | Roller kit-For 3/4" - 1-1/4" Wide belts | 1-set |
8B | AP72D/Kit | Roller kit-For 1-1/4" -2" Wide belts | 1-set |
9B | HP72121C/Complete | Adjustable Bracket Assy With Screws | 1 |
10B | HP72121E Bracket Only | (For new E Bracket See fig.2) |
|
11B | 38PH | Air Hose-Nylon | 16'' |
12B | G6102 | Replacement Handle Grips | 2 |
13B | K4146 | Small Star Knob1/4-20 thread | 1 |
14B | K4147 | Large Star Knob 3/8"-16 thread | 1 |
15B | HP72121E/Spacer | Inlet Spacers | 1-set |
-
